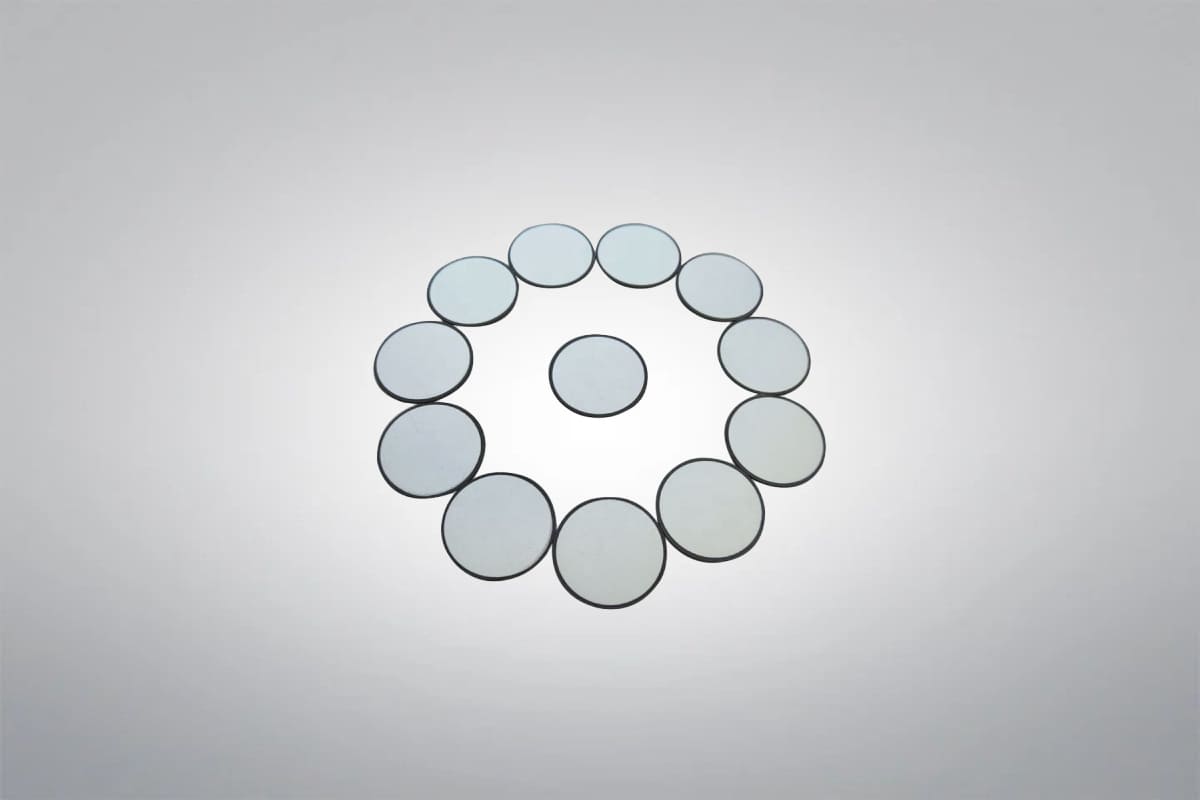

PZT Plate/Sheet/Disc Data Sheet

Color:

Blanco

Material:

Lead Zirconate Titanate (PZT)

Forma:

Plate / Sheet / Disc

Dimensión:

Standard or customized

PZT Plate/Sheet/Disc Description

PZT Plate/Sheet/Disc is a high-performance piezoelectric ceramic product known for its strong electromechanical coupling, high dielectric constant, and stable frequency characteristics. It is widely used in sensors, actuators, ultrasonic devices, and precision motion systems where rapid response and reliability are critical. With excellent mechanical strength and consistent performance across a range of operating conditions, it ensures long service life and precise functionality in demanding industrial and research environments.

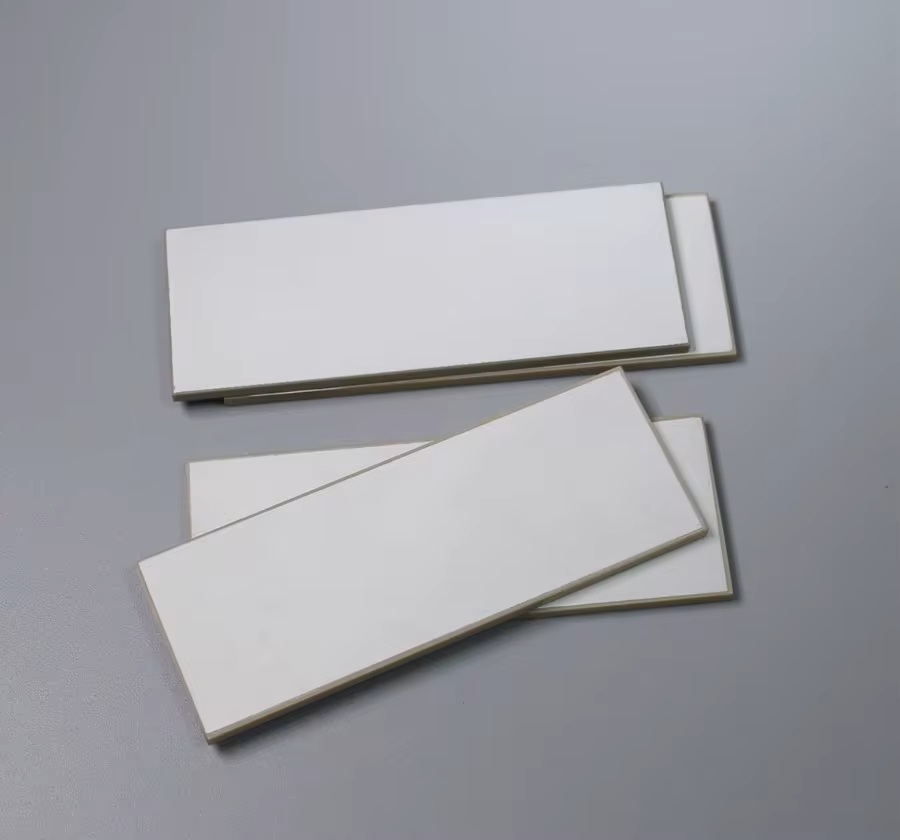

  • PZT Plate
    PZT Plate

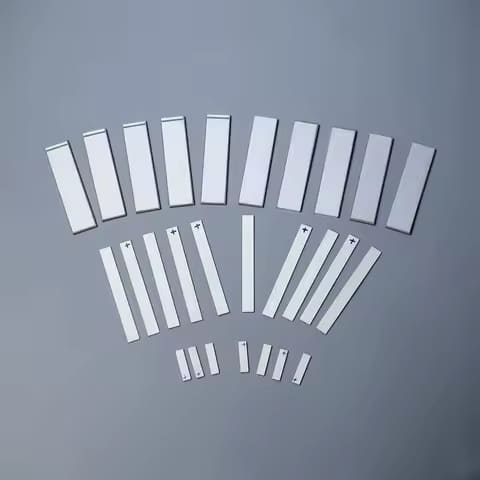

  • PZT Sheet
    PZT Sheet

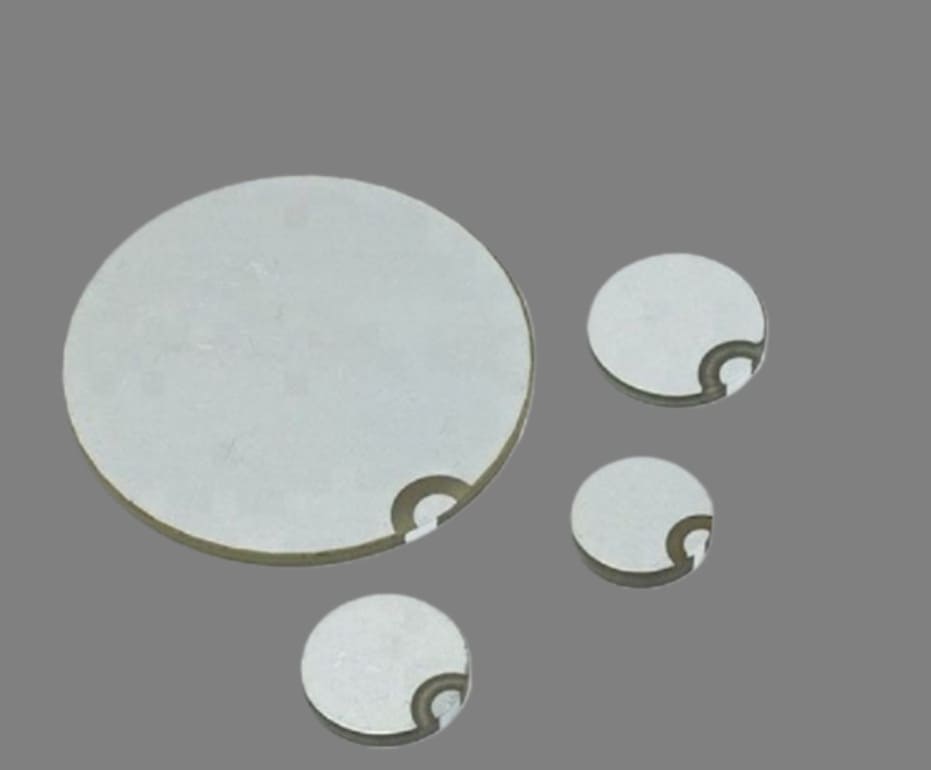

  • PZT Disc
    PZT Disc

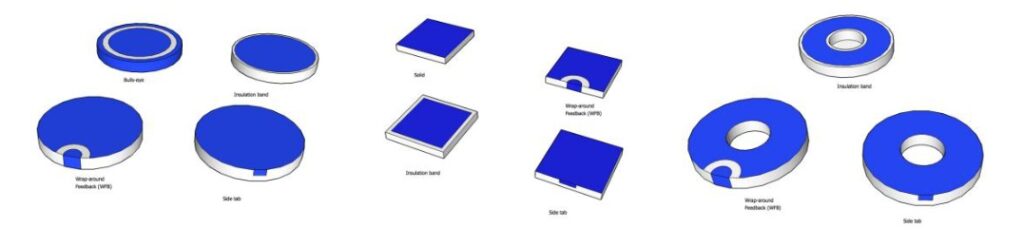

  • PZT Electrode Specifications
    PZT Electrode Specifications

PZT Ceramic Tolerances

Capacitance±20%Yes
d33 (Piezo Coefficient)±20%Yes
Frequency±5%±0.5%
Shape & DimensionStandard Value RangeTolerance (±)
Disc / Ring / Tube
Outer Diameter< 25 mm0.25 mm
≥ 25 mm to < 38 mm0.38 mm
≥ 38 mm to < 50 mm0.60 mm
≥ 50 mm1.00 mm
Ring / Tube
Inner Diameter< 6 mm0.25 mm
≥ 6 mm to < 13 mm0.38 mm
≥ 13 mm to < 25 mm0.50 mm
≥ 25 mm0.60 mm
Square Plate
Length or Width< 13 mm0.13 mm
≥ 13 mm to < 25 mm0.25 mm
≥ 25 mm to 38 mm0.38 mm
≥ 38 mm to < 50 mm0.60 mm
≥ 50 mm1.00 mm
Espesor0.20 mm to < 5.00 mm0.025 mm
≥ 5.00 mm0.05 mm

PZT Electrode Specifications

MaterialAC Driving Voltage (V/mm)DC Driving Voltage (V/mm)Customizable Maximum Voltage (V/mm)
PZT4360 ~ 440720 ~ 880Up to 1000
PZT5200 ~ 280400 ~ 560
PZT8360 ~ 440720 ~ 880

PZT Plate/Sheet/Disc Specifications

ModelLength L [mm] ±0.1Width W [mm] ±0.1Height [mm] ±0.05Weight [g] ±5%Drive Voltage [V]Displacement [μm] ±15%Capacitance [nF] ±15%Resonant Frequency [kHz] ±20%Stiffness [N/μm] ±20%Force [N] ±20%
NAC20012220.07603150>48656168
NAC20023320.15603400>486126378
NAC20035520.376031080>4863501050
NAC20112220.051503.325>48651168
NAC20123320.141503.365>486115378
NAC20135520.401503.3190>4863181050
NAC2014 [1]7720.791503.3380>4866242060
NAC2015 [2]101021.581503.3760>48612734200
NAC2021 [1]7720.782003.3220>4866242060
NAC2022 [2]101021.612003.3440>48612734200
NAC2023 [3]151523.662003.3970>48628649450
NAC2017202026.402003.31800>486509116800
NAC20243320.142001.925>500161290
NAC20255520.382001.980>500400800
012605 Gold Electrode3310.092001.525–210360

PZT Plate/Sheet/Disc Features

  • High Piezoelectric Performance: Delivers strong electromechanical coupling, making it ideal for sensors, actuators, and ultrasonic transducers.
  • Dimensiones personalizables: Available in various sizes, shapes, and thicknesses to meet different industrial and research needs.
  • Stable Material Properties: Maintains consistent dielectric, mechanical, and thermal performance over a wide temperature range.
  • Wide Frequency Adaptability: Supports operation in both low- and high-frequency applications, ensuring design flexibility.
  • Durable and Reliable: Offers long service life with resistance to mechanical wear and environmental degradation.

PZT Plate/Sheet/Disc Applications

  • Ultrasonic Transducers: Used in medical imaging, flaw detection, and underwater sonar systems.
  • Precision Sensors: Applied in pressure, acceleration, and vibration sensing devices.
  • Actuators: Integrated into precision positioning systems, micro-pumps, and adaptive optics.
  • Energy Harvesting Devices: Convert mechanical vibrations into electrical energy for low-power electronics.
  • Acoustic Devices: Used in speakers, buzzers, and sound wave generation equipment.

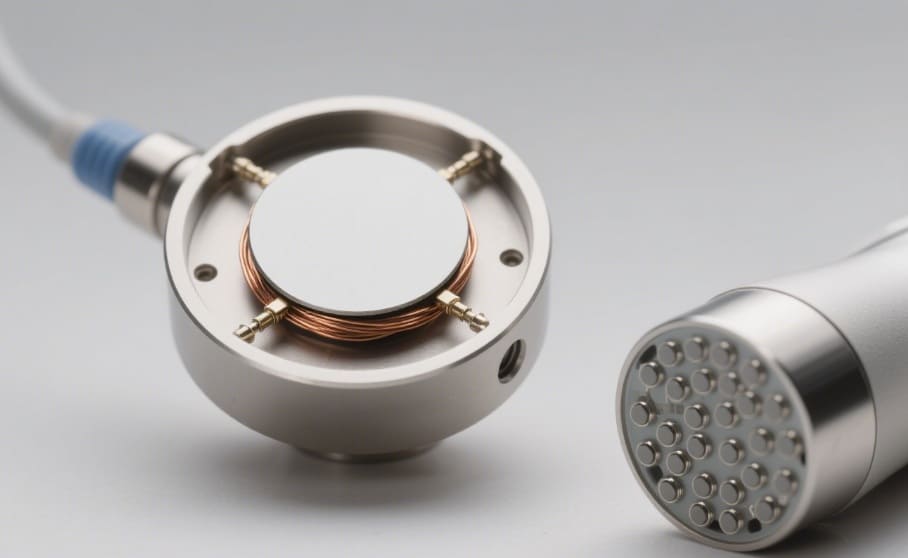

  • Ultrasonic Transducers
    Ultrasonic Transducers

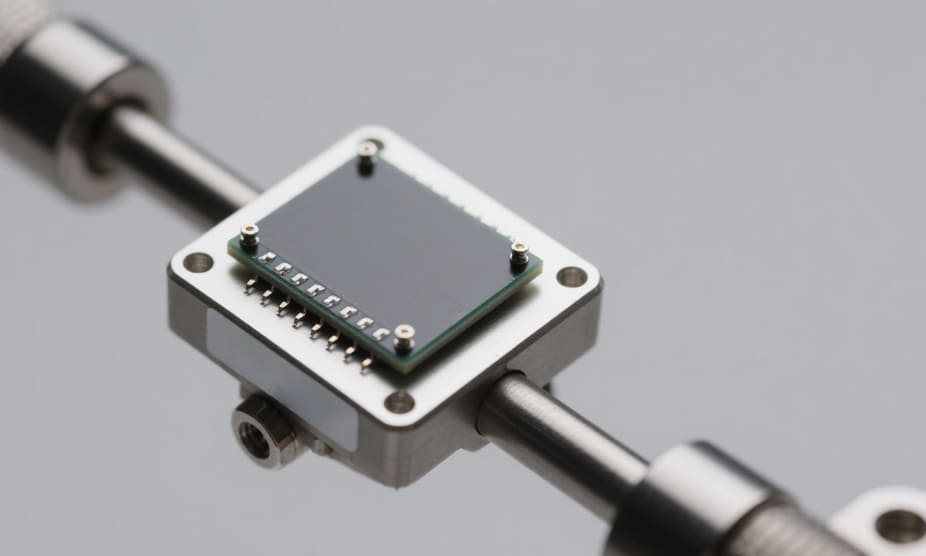

  • Sensores de precisión
    Sensores de precisión

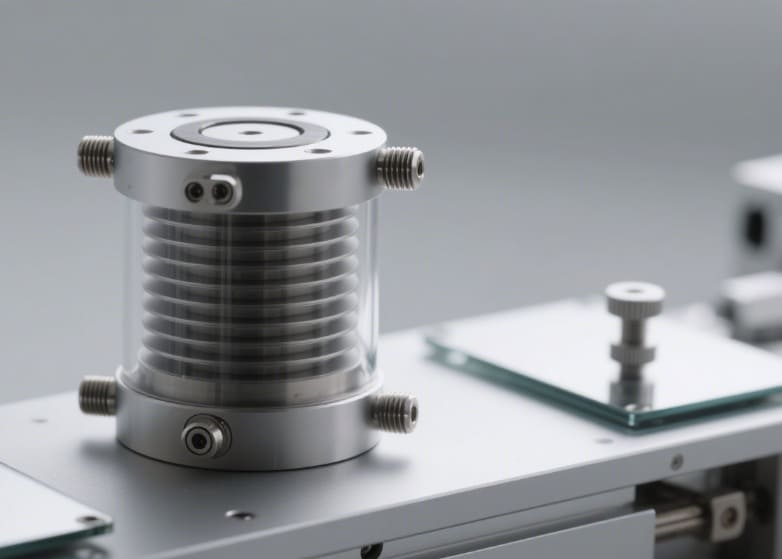

  • Actuators
    Actuators

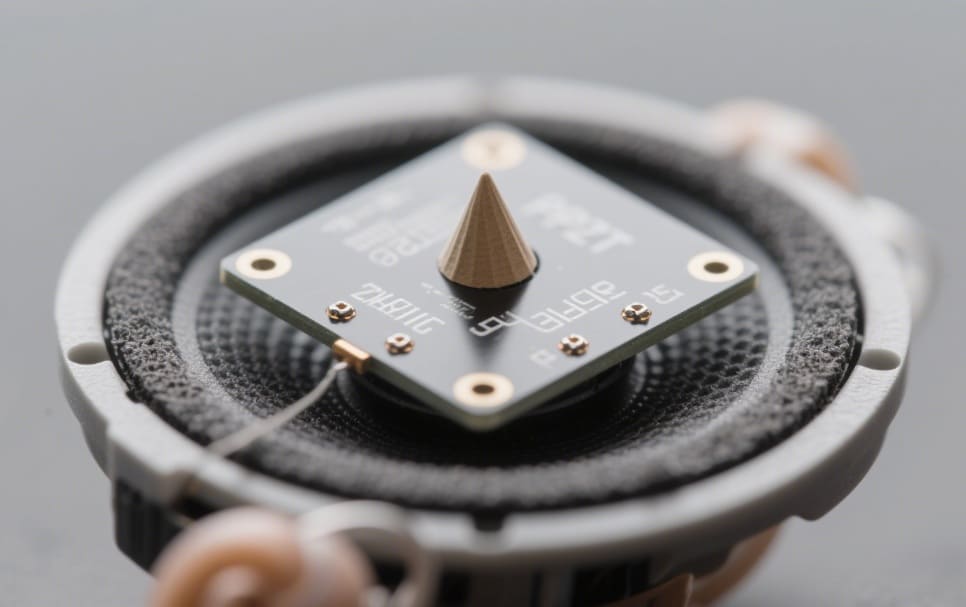

  • Acoustic Devices
    Acoustic Devices

PZT Ceramic Material Properties

PropiedadesMateriales
PZT4PZT5PZT8
840841842**844**850851**854855860880881**
Relative PermittivityKT12751375137515001900195027503300120010501030
Dielectric Loss Factor (%)tan δ0.600.400.450.40≤ 2.001.50≤ 2.00≤ 2.50≤2.000.400.40
Curie Temperature (°C)Tc325320325320360360250200360310310
Electromechanical Coupling Coefficientkp0.590.600.650.680.630.710.660.680.500.500.58
k330.720.68––0.72–0.680.760.450.62–
k310.350.33––0.36––0.40–0.30–
k150.700.67––0.68––0.66–0.55–
kt––0.480.48–0.51––––0.46
Piezoelectric Charge Constant (10⁻¹² C/N or 10⁻¹² m/V)d33290300300300400400600630380215220
-d31125109––175–260276–95–
d15480450––590–625720–330–
Piezoelectric Voltage Constant (10⁻³ Vm/N or 10⁻³ m²/C)g3326.525.526.324.524.824.825.521.038.025.026.7
-g3111.010.5––12.4––9.0–10.0–
g1538.035.0––36.0––27.0–28.0–
Young’s Modulus (10¹⁰ N/m²)YE118.07.68.07.66.36.36.05.9–9.09.0
YE336.86.36.86.35.45.45.25.1–7.27.2
Frequency Constant (Hz·m or m/s)NL (Length Direction)15241700––1500––1390–1725–
NT (Thickness Direction)20052005205020502040204020002079139021102050
NP (Planar Direction)21302055223022501980208019721920190021202300
Densidad (g/cm³)ρ7.67.67.67.77.67.67.67.66.67.67.6
Mechanical Quality FactorQm50014006001500808070655010001000
Acoustic Impedance (Mrayl)––––31.5–––16.5––

PZT Plate/Sheet/Disc Ceramic Packaging

PZT ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
