Barra Macor

Macor Rod/Bar Description

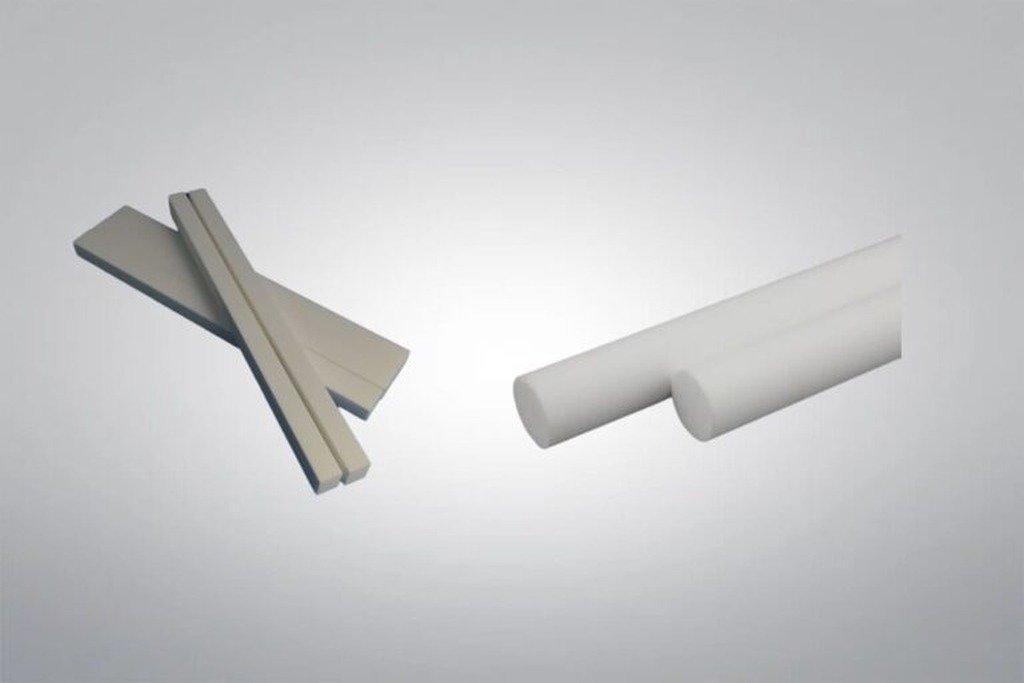

Macor Rod/Bar offers a reliable combination of high mechanical strength, electrical insulation, and excellent dimensional stability across extreme temperatures. With zero porosity and the ability to withstand up to 800°C under load (and 1000°C without load), it maintains rigidity where many high-temperature plastics would deform. It can be machined with standard metalworking tools to very tight tolerances, eliminating the need for post-machining sintering. Macor rods are also vacuum-compatible, non-outgassing, and can be bonded or metallized, making them a practical solution for demanding applications in aerospace, medical, and high-precision instrumentation.

Macor Rod/Bar Chemical Compositions

Macor Rod/Bar Features

• Easily Machinable with Metal Tools: No need for sintering or special equipment—Macor can be drilled, milled, and turned using standard metalworking tools.
• High Thermal Resistance: Maintains strength and shape up to 800°C (and even 1000°C without load), making it reliable for extreme heat environments.
• Excelente aislamiento eléctrico: Withstands high voltages and offers stable dielectric performance, suitable for vacuum and electronic applications.
• Zero Porosity and Low Outgassing: Ideal for ultra-clean systems such as semiconductor chambers, space applications, and medical environments.
• Dimensional Stability: Low thermal expansion and good thermal shock resistance ensure components remain precise even under fluctuating temperatures.

Macor Rod/Bar Applications

• Aerospace Insulating Components: Used for precision thermal insulators and support structures in satellites and spacecraft.
• Medical Equipment Parts: Ideal for non-reactive, clean, and sterilizable components in diagnostic and surgical instruments.
• Vacuum System Hardware: Commonly used in vacuum chambers and electron beam systems where low outgassing is critical.
• High-Temperature Fixtures: Serves as stable support rods or holders in furnaces, ovens, and thermal testing equipment.
• Electrical Isolators: Acts as a reliable insulating bar or terminal spacer in high-voltage and RF electronic assemblies.

Macor Machinable Glass Ceramic Properties

Macor Machinable Glass Ceramic Material Machining

Macor is one of the rare ceramics that can be machined using standard metalworking tools without the need for post-sintering processes. This makes it especially useful for prototyping and custom part production with tight tolerances. However, understanding its machining behavior is key to achieving clean, precise results.

• Standard Tool Compatibility: Macor can be drilled, milled, turned, and tapped using regular carbide or high-speed steel tools, eliminating the need for diamond tooling.
• No Plastic Deformation: Unlike metals or plastics, Macor does not deform before breaking. Operators must prevent stress concentrations to avoid edge chipping or cracking.
• Precisión de mecanizado: Surface finishes up to 0.5 µm and tolerances as tight as ±0.005 mm are achievable with careful planning and skilled handling.
• Dry Machining Preferred: Coolants are generally not required. Dry machining helps prevent contamination and simplifies cleanup in high-purity applications.
• Practice Recommended: Due to Macor’s unique cutting behavior, it’s recommended to practice machining techniques on scrap material before processing final components.

Macor Rod/Bar Ceramic Packaging

Macor machinable glass ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
