PZT Tube Data Sheet
|
Color: |
Blanco |
|
Material: |
Lead Zirconate Titanate (PZT) |
|
Forma: |
Tubo |
|
Dimensión: |
Standard or customized |
PZT Tube Description

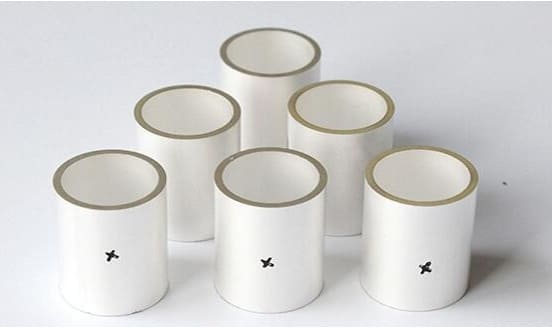

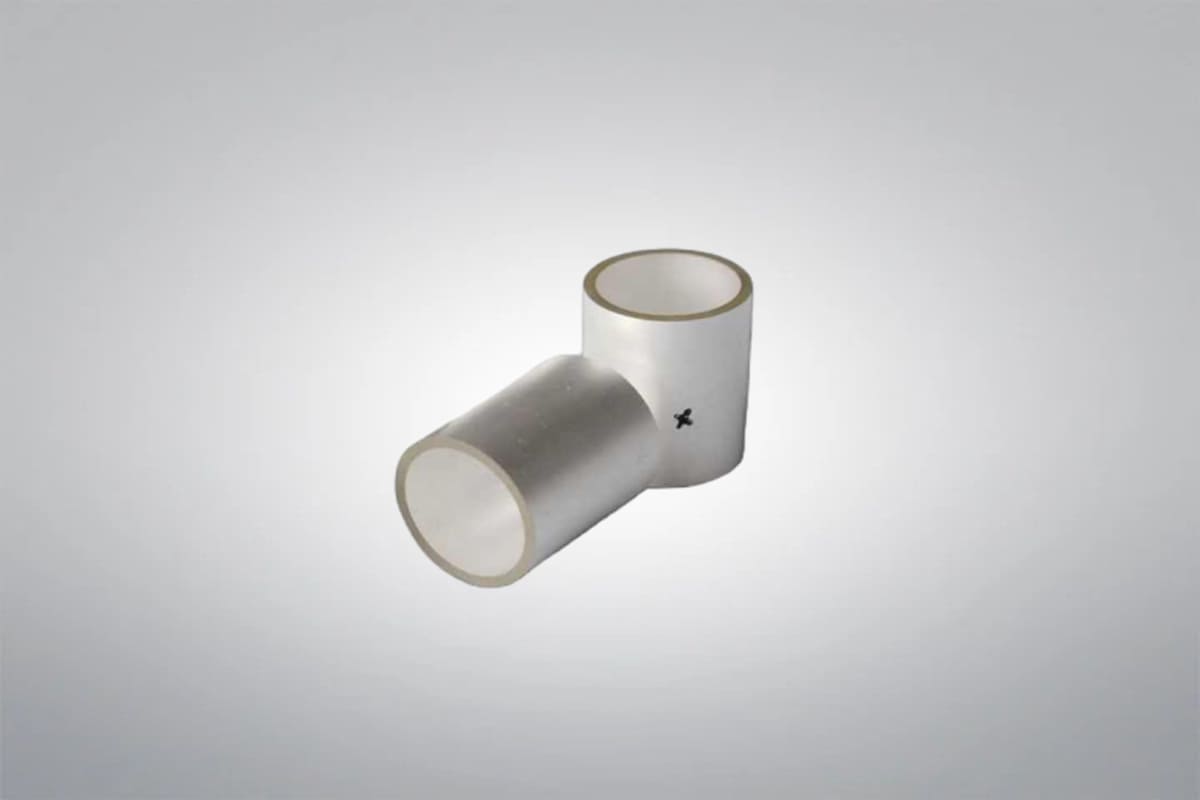

PZT Tube is a cylindrical component made from lead zirconate titanate (PZT) ceramic, offering excellent piezoelectric properties and high mechanical strength. It is widely used in applications such as ultrasonic transducers, sensors, actuators, and underwater acoustic devices, where efficient conversion between electrical and mechanical energy is required. With customizable dimensions, wall thicknesses, and electrode configurations, PZT Tube can be engineered to meet specific performance needs in both industrial and research environments.
PZT Tube-
PZT Electrode Specifications
PZT Ceramic Tolerances
| Capacitance | ±20% | Yes |
| d33 (Piezo Coefficient) | ±20% | Yes |
| Frequency | ±5% | ±0.5% |
| Shape & Dimension | Standard Value Range | Tolerance (±) |
| Disc / Ring / Tube | ||
| Outer Diameter | < 25 mm | 0.25 mm |
| ≥ 25 mm to < 38 mm | 0.38 mm | |
| ≥ 38 mm to < 50 mm | 0.60 mm | |
| ≥ 50 mm | 1.00 mm | |
| Ring / Tube | ||
| Inner Diameter | < 6 mm | 0.25 mm |
| ≥ 6 mm to < 13 mm | 0.38 mm | |
| ≥ 13 mm to < 25 mm | 0.50 mm | |
| ≥ 25 mm | 0.60 mm | |
| Square Plate | ||
| Length or Width | < 13 mm | 0.13 mm |
| ≥ 13 mm to < 25 mm | 0.25 mm | |
| ≥ 25 mm to 38 mm | 0.38 mm | |
| ≥ 38 mm to < 50 mm | 0.60 mm | |
| ≥ 50 mm | 1.00 mm | |
| Espesor | 0.20 mm to < 5.00 mm | 0.025 mm |
| ≥ 5.00 mm | 0.05 mm | |
PZT Electrode Specifications
| Material | AC Driving Voltage (V/mm) | DC Driving Voltage (V/mm) | Customizable Maximum Voltage (V/mm) |
| PZT4 | 360 ~ 440 | 720 ~ 880 | Up to 1000 |
| PZT5 | 200 ~ 280 | 400 ~ 560 | |
| PZT8 | 360 ~ 440 | 720 ~ 880 |
PZT Tube Specifications
| Parámetro | Especificación |
| Outer Diameter | 5 mm – 140 mm |
| Altura | 1 mm – 60 mm |
| Inner Diameter | 1 mm |
| Wall Thickness | 1 mm |
| Customization | Available for dimensions and materials |
PZT Tube Features
- High Piezoelectric Performance: pzt tube offers excellent piezoelectric coefficients, enabling efficient conversion between electrical and mechanical energy.
- Wide Frequency Range: Suitable for applications from low to high frequencies, ensuring versatility in acoustic and ultrasonic systems.
- Dimensional Stability: Maintains precise dimensions under varying temperature and load conditions, ensuring consistent performance.
- Material Options: Available in multiple PZT material grades (PZT-4, PZT-5, PZT-8, etc.) to match different application needs.
- Diseño personalizable: Dimensions, wall thickness, and electrode configurations can be customized for specific project requirements.
PZT Tube Applications
- Ultrasonic Transducers: Used in ultrasonic cleaning, medical imaging, and non-destructive testing devices for generating and receiving high-frequency sound waves.
- Sonar Systems: Serves as a key component in underwater detection and communication systems for both commercial and defense applications.
- Flow Measurement: Integrated into ultrasonic flow meters to provide accurate liquid or gas flow monitoring in industrial and laboratory settings.
- Actuators and Sensors: Employed in precision positioning systems, vibration detection, and force sensing devices.
- Acoustic Projectors: Used in underwater acoustic communication and sound projection systems requiring high reliability and stable performance
Ultrasonic Transducers
Sensores de precisión
Actuators
Acoustic Devices
PZT Ceramic Material Properties
PZT Tube Ceramic Packaging
PZT ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
