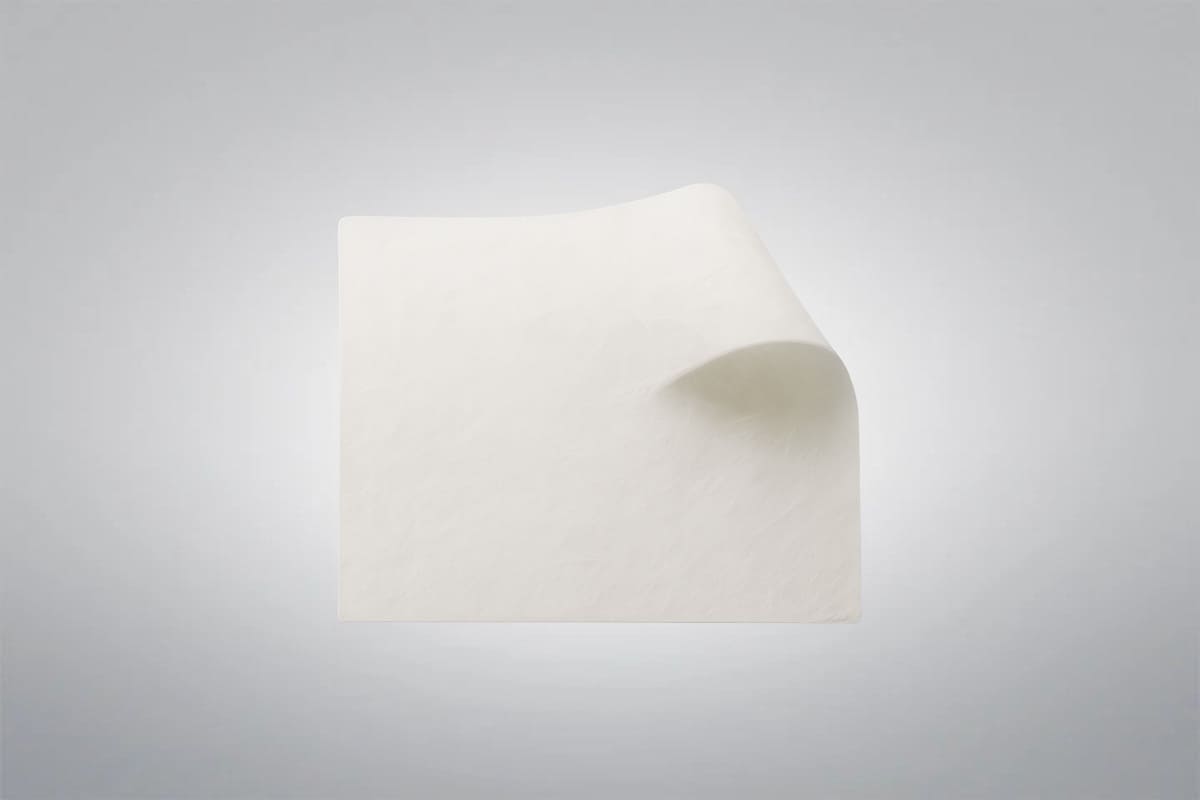

Papier flexible en fibre de nitrure de bore

Papier flexible en fibre de nitrure de bore

Papier flexible en fibre de nitrure de bore

Dimension: Customized
Materials: BN

  • Dimensions sur mesure et dimensions standard en stock
  • Délai d'exécution rapide
  • Prix compétitif
  • Flexible Boron Nitride Fiber Paper is a high-purity, lightweight material made from thermally stable fibers, offering excellent heat resistance, chemical inertness, and electrical insulation. Its uniform fiber network provides consistent performance and flexibility, making it suitable for high-temperature insulation, thermal management, and protective applications in advanced industries. As a leading supplier and manufacturer of premium boron nitride products, we can supply high-quality Flexible Boron Nitride Fiber Paper with various specifications and competitive prices, offering customized solutions to meet specific requirements.

Ou envoyez-nous un courriel à l'adresse suivante sales@heegermaterials.com.

Flexible Boron Nitride Fiber Paper Data Sheet

Dimension :

Sur mesure

Materials:

BN

Flexible Boron Nitride Fiber Paper Description

Flexible Boron Nitride Fiber Paper is a high-performance material composed of thermally stable, lightweight fibers with outstanding chemical resistance and electrical insulation properties. It delivers consistent quality, superior heat resistance, and excellent flexibility, making it ideal for high-temperature insulation, thermal management, and protective applications in advanced industrial and research settings.

Papier flexible en fibre de nitrure de bore

Flexible Boron Nitride Fiber Paper Types

Boron Nitride Insulation Paper

Boron Nitride Insulation Paper is a high-purity, lightweight material designed for superior thermal stability, chemical resistance, and electrical insulation. Its uniform structure ensures consistent performance, making it suitable for high-temperature insulation, electronic components, and protective applications in advanced industrial settings.

Boron Nitride Insulation Paper

Test Item

Unité

Standard Value

Tested Value

Basis Weight

g/m²

350 ± 20

352

Épaisseur

mm

0.45 ± 0.05

0.47

Résistance à la traction

kN/m

≥ 1.0

1.2

Breakdown Strength

kV/mm

≥ 10

13

Résistivité volumique

Ω·m

≥ 4×10⁶

4.5×10⁶

Moisture Content

%

≤ 3

1.0

Combustible Content

%

≤ 3

1.5

Minimum Bending Diameter

mm

60 (No breakage or cracks observed)

Conductivité thermique

W/m-K

2.101

Boron Nitride White Ring Paper

Boron Nitride White Ring Paper is a high-purity, lightweight material made from thermally stable BN fibers, offering strong heat resistance, chemical inertness, and reliable electrical insulation. Its smooth, uniform structure provides consistent performance and easy processing, making it suitable for high-temperature insulation, electronic components, and specialized industrial applications.

Test Item

Unité

Standard Value

Tested Value

Basis Weight

g/m²

350 ± 20

352

Épaisseur

mm

0.45 ± 0.05

0.47

Résistance à la traction

kN/m

≥ 1.0

1.2

Breakdown Strength

kV/mm

≥ 10

13

Résistivité volumique

Ω·m

≥ 4×10⁶

4.5×10⁶

Moisture Content

%

≤ 3

1.0

Combustible Content

%

≤ 3

1.5

Minimum Bending Diameter

mm

60 (No breakage or cracks observed)

Conductivité thermique

W/m-K

2.101

Boron Nitride Release Paper

Boron Nitride Release Paper is a high-purity, lightweight material engineered to deliver excellent thermal stability, chemical resistance, and clean release performance. Its uniform BN fiber structure prevents sticking during high-temperature processing, making it suitable for sintering, metal casting, and composite manufacturing.

Test Item

Unité

GTBNFP-R(70011000)

GTBNFP-R(90131006)

Standard Value

Tested Value

Standard Value

Tested Value

Basis Weight

g/m²

160 ± 15

159

290 ± 20

289

Épaisseur

mm

0.35 ± 0.03

0.34

0.40 ± 0.04

0.41

Résistance à la traction

kN/m

≥ 0.2

0.3

≥ 0.5

0.8

Breakdown Voltage

kV/mm

≥ 10

14

≥ 10

12.58

Résistivité volumique

Ω·m

4 × 10⁸

8.9 × 10⁸

4 × 10⁸

1.0 × 10¹³

Moisture Content

%

≤ 1

0.6

≤ 1

0.6

Combustible Content

%

≤ 3

2.0

≤ 16

13.4

Minimum Bending Radius

mm

/

20

/

20

Boron Nitride Insulating Coating Paper

Boron Nitride Insulating Coating Paper is a high-purity material made from BN fibers that offers strong thermal stability, chemical resistance, and dependable electrical insulation. Its smooth, uniform surface allows for clean application as a protective coating layer in high-temperature and electrical environments, making it suitable for furnaces, electronic components, and advanced manufacturing processes.

Test Item

Unité

Standard Value

Tested Value

Basis Weight

g/m²

160 ± 15

159

Épaisseur

mm

0.25 ± 0.02

0.24

Résistance à la traction

kN/m

≥ 1.0

1.3

Rigidité diélectrique

kV/mm

≥ 10

12

Résistivité volumique

Ω·m

≥ 4 × 10⁸

7.1 × 10⁸

Moisture Content

%

≤ 1

0.6

Combustible Content

%

≤ 10

9.0

Minimum Bending Radius

mm

/

20

Flexible Boron Nitride Fiber Paper Applications

  • High-Temperature Insulation: Provides stable thermal protection for furnaces, heaters, and other equipment exposed to extreme temperatures.
  • Electronic Insulation: Acts as a lightweight, non-conductive barrier in electronic devices, sensors, and high-voltage components.
  • Composite Manufacturing: Serves as a reinforcement or release layer in composite fabrication, ensuring clean processing and improved stability.
  • Thermal Management: Used in devices that require efficient heat spreading or shielding without adding significant weight.
  • Aerospace & Automotive: Supports lightweight thermal protection and heat-shielding applications in demanding aerospace and automotive environments.

Propriétés des matériaux en nitrure de bore

Articles

Unité

Grade A

Grade AX05

Grade HP

Grade M26

Grade ZSBN

HMBN1000

HMBN2000

HMBN3000

HMBN4000

HMBN5000

Densité

g/cm³

2.0

1.9

2.0

2.1

2.9

1.9

2.1

1.9

1.85-2.05

2.0

Résistance à la compression

MPa

143 ∥ / 186 ⟂

25 ∥

96 ∥

219 ∥ / 254 ⟂

40 ∥ / 40 ⟂

312 ∥ / 312 ⟂

24 ∥

95 ∥

Résistance à la flexion

MPa

94 ∥ / 65 ⟂

22 ∥ / 21 ⟂

59 ∥ / 45 ⟂

62 ∥ / 34 ⟂

144 ∥ / 107 ⟂

13 ∥ / 29 ⟂

>49

21 ∥ / 20 ⟂

58 ∥ / 44 ⟂

61 ∥ / 33 ⟂

Young's Modulus

GPa

47 ∥ / 74 ⟂

17 ∥ / 71 ⟂

40 ∥ / 60 ⟂

45 ∥ / 73 ⟂

39 ∥ / 58 ⟂

Poisson's Ratio

MPa

94 ∥ / 65 ⟂

22 ∥ / 21 ⟂

59 ∥ / 45 ⟂

62 ∥ / 34 ⟂

144 ∥ / 107 ⟂

14 ∥ / 30 ⟂

< 50

20 ∥ / 20 ⟂

50 ∥ / 50 ⟂

50 ∥ / 50 ⟂

Articles

Unité

Grade A

Grade AX05

Grade HP

Grade M26

Grade ZSBN

HMBN1000

HMBN2000

HMBN3000

HMBN4000

HMBN5000

Conductivité thermique

W/mK

30 ∥ / 34 ⟂

78 ∥ / 130 ⟂

27 ∥ / 29 ⟂

11 ∥ / 29 ⟂

24 ∥ / 34 ⟂

21 ∥ / 21 ⟂

73 ∥ / 128 ⟂

27 ∥ / 29 ⟂

11 ∥ / 26 ⟂

Max Temp (Oxidizing)

°C

850

850

850

1000+

850

850

850

850

850

1000

Max Temp (Inert)

°C

1200

2000

1150

1000+

1600

2000

1000

2000

1200

1000

CTE 25°C ➞ 400°C

10⁻⁶/K

3.0 ∥ / 3.0 ⟂

-2.3 ∥ / -0.7 ⟂

0.6 ∥ / 0.4 ⟂

3.0 ∥ / 0.4 ⟂

4.1 ∥ / 3.4 ⟂

-2.3 ∥ / -0.7 ⟂

0.6 ∥ / 0.4 ⟂

3.0 ∥ / 0.4 ⟂

CTE 400°C ➞ 800°C

10⁻⁶/K

2.0 ∥ / 1.4 ⟂

-2.5 ∥ / 1.1 ⟂

1.1 ∥ / 0.8 ⟂

2.5 ∥ / 0.1 ⟂

5.6 ∥ / 4.3 ⟂

-2.5 ∥ / 1.1 ⟂

1.1 ∥ / 0.8 ⟂

5.6 ∥ / 4.3 ⟂

CTE 800°C ➞ 1200°C

10⁻⁶/K

1.9 ∥ / 1.8 ⟂

1.6 ∥ / 0.4 ⟂

1.5 ∥ / 0.9 ⟂

3.0 ∥ / 0.1 ⟂

7.2 ∥ / 5.2 ⟂

1.6 ∥ / 0.4 ⟂

1.5 ∥ / 0.9 ⟂

7.2 ∥ / 5.2 ⟂

CTE 1200°C ➞ 1600°C

10⁻⁶/K

5.0 ∥ / 4.8 ⟂

0.9 ∥ / 0.3 ⟂

2.8 ∥ / 2.7 ⟂

4.6 ∥ / 3.4 ⟂

0.9 ∥ / 0.3 ⟂

2.8 ∥ / 2.7 ⟂

4.6 ∥ / 3.4 ⟂

CTE 1600°C ➞ 1900°C

10⁻⁶/K

7.2 ∥ / 6.1 ⟂

0.5 ∥ / 0.9 ⟂

0.5 ∥ / 0.9 ⟂

CTE 25°C ➞ 1000°C

10⁻⁶/K

5.5 ∥ / 1 ⟂

2.5 ∥ / 2.0 ⟂

Articles

Unité

Grade A

Grade AX05

Grade HP

Grade M26

Grade ZSBN

HMBN1000

HMBN2000

HMBN3000

HMBN4000

HMBN5000

Rigidité diélectrique

kV/mm

88

79

>10

66

3.5

>40

>40

>40

>40

Constante diélectrique

1 MHz

4.6 ∥ / 4.2 ⟂

4.0 ∥ / 4.0 ⟂

4.3 ∥ / 4.0 ⟂

4.5 ∥ / 3.8 ⟂

18 ∥ / 19 ⟂

4.0 ∥ / 4.0 ⟂

4.3 ∥ / 4.0 ⟂

4.5 ∥ / 3.8 ⟂

Facteur de dissipation

1 MHz

1.2×10⁻³ ∥ / 3.4×10⁻³ ⟂

1.2×10⁻³ ∥ / 3.0×10⁻³ ⟂

1.5×10⁻³ ∥ / 2.1×10⁻³ ⟂

1.7×10⁻³ ∥ / 6.7×10⁻³ ⟂

4.5×10⁻² ∥ / 6.7×10⁻² ⟂

1.2×10⁻³ ∥ / 3.0×10⁻⁴ ⟂

1.5×10⁻³ ∥ / 2.1×10⁻³ ⟂

1.7×10⁻³ ∥ / 6.7×10⁻³ ⟂

Volume Resistivity @25°C

ohm-cm

>10¹³ ∥ / 10¹⁴ ⟂

>10¹³ ∥ / 10¹⁴ ⟂

>10¹³ ∥ / 10¹³ ⟂

>10¹³ ∥ / 10¹⁴ ⟂

>10¹³ ∥ / 10¹² ⟂

>10¹⁴

>10¹³ ∥ / 10¹⁴ ⟂

>10¹³ ∥ / 10¹³ ⟂

>10¹³ ∥ / 10¹⁴ ⟂

Grades de matériaux en nitrure de bore

Grade A is the standard boron nitride ceramic grade, sintered with a calcium borate binder. It offers excellent electrical insulation, good thermal conductivity, and outstanding machinability, making it the most widely used BN grade for general industrial applications.

Grade

Introduction

Propriétés principales

Grade A

Standard hBN grade; calcium borate binder; density 2.0 g/cm³

– Compressive strength: 143 ∥ / 186 ⟂ MPa
– Flexural strength: 94 ∥ / 65 ⟂ MPa
– Thermal conductivity: 30 ∥ / 34 ⟂ W/mK
– Max service temp: 850°C oxidizing, 1200°C inert
– Dielectric strength: 88 kV/mm; resistivity >10¹³ ohm-cm

Grade AX05 is engineered for applications demanding extremely high thermal conductivity. The highly oriented hBN microstructure delivers outstanding in-plane thermal performance, making it ideal for thermal management substrates and heat-spreader components operating up to 2000°C in inert atmospheres.

Grade

Introduction

Propriétés principales

Grade AX05

High thermal conductivity hBN; highly oriented microstructure; density 1.9 g/cm³

– Thermal conductivity: 78 ∥ / 130 ⟂ W/mK (exceptional)
– Flexural strength: 22 ∥ / 21 ⟂ MPa
– Max service temp: 850°C oxidizing, 2000°C inert
– CTE: −2.3 ∥ / −0.7 ⟂ ×10⁻⁶/K (25–400°C)
– Dielectric strength: 79 kV/mm

Grade HP is a high-purity boron nitride grade with a binder-free composition. Its excellent chemical inertness and purity make it the preferred choice for semiconductor processing, crystal growth crucibles, and applications requiring minimal contamination.

Grade

Introduction

Propriétés principales

Grade HP

High-purity hBN; binder-free composition; density 2.0 g/cm³

– Compressive strength: 96 ∥ MPa
– Flexural strength: 59 ∥ / 45 ⟂ MPa
– Thermal conductivity: 27 ∥ / 29 ⟂ W/mK
– Max service temp: 850°C oxidizing, 1150°C inert
– Dielectric strength: >10 kV/mm; resistivity >10¹³ ohm-cm

Grade M26 is a modified boron nitride grade engineered for superior moisture resistance—over 10 times more resistant to humidity than standard grades. Its unique binder system maintains stable electrical and thermal properties in humid operating environments, with an extended oxidizing service temperature above 1000°C.

Grade

Introduction

Propriétés principales

Grade M26

Moisture-resistant modified hBN; unique binder system; density 2.1 g/cm³

– Flexural strength: 62 ∥ / 34 ⟂ MPa
– Thermal conductivity: 11 ∥ / 29 ⟂ W/mK
– Max service temp: 1000+°C oxidizing, 1000+°C inert
– 10× moisture resistance vs. standard grades
– Dielectric strength: 66 kV/mm

Grade ZSBN is a zirconia-reinforced boron nitride composite offering the highest mechanical strength in the BN product family. The ZrO₂ reinforcement significantly improves compressive and flexural strength while retaining BN’s excellent machinability and electrical insulation properties.

Grade

Introduction

Propriétés principales

Grade ZSBN

Zirconia-reinforced hBN composite; ZrO₂ binder; density 2.9 g/cm³

– Compressive strength: 219 ∥ / 254 ⟂ MPa (highest in range)
– Flexural strength: 144 ∥ / 107 ⟂ MPa (highest in range)
– Thermal conductivity: 24 ∥ / 34 ⟂ W/mK
– Max service temp: 850°C oxidizing, 1600°C inert
– Dielectric strength: 3.5 kV/mm

HMBN1000 is a premium-grade hBN material in the HMBN series, offering ultra-high-temperature stability up to 2000°C in inert atmospheres. Its exceptionally high volume resistivity makes it well-suited for demanding electrical insulation in high-temperature vacuum environments.

Grade

Introduction

Propriétés principales

HMBN1000

hBN premium grade; high-temp stability; density 1.9 g/cm³

– Compressive strength: 40 ∥ / 40 ⟂ MPa
– Flexural strength: 13 ∥ / 29 ⟂ MPa
– Thermal conductivity: 21 ∥ / 21 ⟂ W/mK
– Max service temp: 850°C oxidizing, 2000°C inert
– Volume resistivity: >10¹⁴ ohm-cm

HMBN2000 is an HMBN-series grade combining high density with exceptional compressive strength. Its superior structural integrity makes it a preferred choice for high-load applications in metallurgical processing and advanced industrial environments.

Grade

Introduction

Propriétés principales

HMBN2000

High-strength HMBN grade; high-density composite; density 2.1 g/cm³

– Compressive strength: 312 ∥ / 312 ⟂ MPa (highest in HMBN series)
– Flexural strength: >49 MPa
– Max service temp: 850°C oxidizing, 1000°C inert
– High isotropy: equal compressive strength in all directions

HMBN3000 delivers outstanding in-plane thermal conductivity within the HMBN series, offering performance comparable to Grade AX05. It is specifically formulated for high-temperature thermal management applications where both conductivity and inert atmosphere stability are critical.

Grade

Introduction

Propriétés principales

HMBN3000

High thermal conductivity HMBN grade; oriented microstructure; density 1.9 g/cm³

– Thermal conductivity: 73 ∥ / 128 ⟂ W/mK (top in HMBN series)
– Compressive strength: 24 ∥ MPa
– Flexural strength: 21 ∥ / 20 ⟂ MPa
– Max service temp: 850°C oxidizing, 2000°C inert
– CTE: −2.3 ∥ / −0.7 ⟂ ×10⁻⁶/K

HMBN4000 is a versatile mid-range HMBN-series grade offering a balanced combination of thermal, electrical, and mechanical properties. Its density range (1.85–2.05 g/cm³) accommodates slight microstructural variation while maintaining consistent performance across semiconductor and high-temperature process applications.

Grade

Introduction

Propriétés principales

HMBN4000

Versatile HMBN grade; balanced properties; density 1.85–2.05 g/cm³

– Compressive strength: 95 ∥ MPa
– Flexural strength: 58 ∥ / 44 ⟂ MPa
– Thermal conductivity: 27 ∥ / 29 ⟂ W/mK
– Max service temp: 850°C oxidizing, 1200°C inert
– Dielectric strength: >40 kV/mm

HMBN5000 is the premium ultra-high-purity grade of the HMBN series. Engineered with stringent quality controls, it minimizes trace contamination for the most demanding semiconductor and photovoltaic process environments, while delivering consistent mechanical and thermal performance in critical applications.

Grade

Introduction

Propriétés principales

HMBN5000

Ultra-high-purity HMBN grade; premium composite; density 2.0 g/cm³

– Thermal conductivity: 11 ∥ / 26 ⟂ W/mK
– Flexural strength: 61 ∥ / 33 ⟂ MPa
– Max service temp: 1000°C oxidizing, 1000°C inert
– Dielectric strength: >40 kV/mm; resistivity >10¹³ ohm-cm
– Ideal for semiconductor, solar (PV), and defense precision parts

Usinage de nitrure de bore

Boron Nitride Machining Center

Le centre d'usinage d'Advanced Ceramic Hub est équipé de plusieurs tours et fraiseuses à commande numérique, et bénéficie d'une grande expérience en matière d'usinage. Nous proposons des produits et des profils en céramique de nitrure de bore personnalisés avec des tolérances extrêmement serrées, adaptés aux exigences des clients. Pendant le processus d'usinage, les précautions suivantes doivent être observées :

  • Les matériaux céramiques à base de nitrure de bore peuvent être usinés à l'aide d'outils de coupe standard en acier rapide. Pour les matériaux plus durs et composites, il est recommandé d'utiliser des outils en carbure ou en diamant.
  • Les opérations de rectification peuvent être effectuées selon les besoins, et les tarauds et filières standard peuvent être utilisés pour usiner les filets.
  • Le processus d'usinage doit toujours se dérouler à sec, sans huile de coupe ni liquide de refroidissement.
  • Les outils de coupe doivent être affûtés et propres, et les outils à angle de coupe négatif ne doivent pas être utilisés.
  • Lors du serrage et de la fixation des matériaux, il convient de veiller à ne pas exercer une pression excessive. Les techniques de fraisage par grimpage doivent être utilisées pour éviter l'écaillage des bords et des coins.

Emballage en nitrure de bore

Les produits en céramique de nitrure de bore sont généralement emballés dans des sacs scellés sous vide pour éviter l'humidité ou la contamination, enveloppés de mousse pour amortir les vibrations et les chocs pendant le transport, ce qui garantit la qualité des produits dans leur état d'origine.

Ceramic Products Packing

Télécharger

Obtenir un devis

We will check and get back to you in 24 hours.

To customize your Flexible Boron Nitride Fiber Paper, please provide the following details:

  1. Dimensions: Specify the desired length, width, and thickness.
  2. Paper Type: Insulation Paper, White Ring Paper, Release Paper, or Insulating Coating Paper.
  3. Application: Describe the intended use environment (temperature range, chemical exposure, etc.).
  4. Quantité: Number of pieces or area required.

Once we have these details, we can provide you with a tailored quote within 24 hours.

Nous avons en stock une grande variété de produits à base de nitrure de bore et pour ceux-ci, il n'y a généralement pas de minimum de commande. Toutefois, pour les commandes personnalisées, nous fixons généralement une valeur minimale de $200. Le délai de livraison des produits en stock est généralement de 1 à 2 semaines, tandis que celui des commandes personnalisées est de 3 à 4 semaines, en fonction des spécificités de la commande.

Flexible Boron Nitride Fiber Paper exhibits excellent thermal stability and maintains its structural integrity at temperatures up to 1000°C in oxidizing atmospheres and up to 1800°C in inert or vacuum environments. It does not melt or drip, making it ideal for sustained high-temperature applications.

No. Flexible Boron Nitride Fiber Paper is an excellent electrical insulator. It has a high volume resistivity and high dielectric strength, making it suitable for use in high-voltage electronic components and electrical insulation applications.

Advanced Ceramics Hub, established in 2016 in Colorado, USA, is a specialized supplier and manufacturer of advanced ceramic products. With extensive expertise in supply and export, we offer competitive pricing and customized solutions tailored to specific requirements, ensuring outstanding quality and customer satisfaction. As a professional provider of ceramics, refractory metals, specialty alloys, spherical powders, and various advanced materials, we serve the research, development, and large-scale industrial production needs of the scientific and industrial sectors.

Advceramicshub Product Enquiry Form

Produits apparentés
