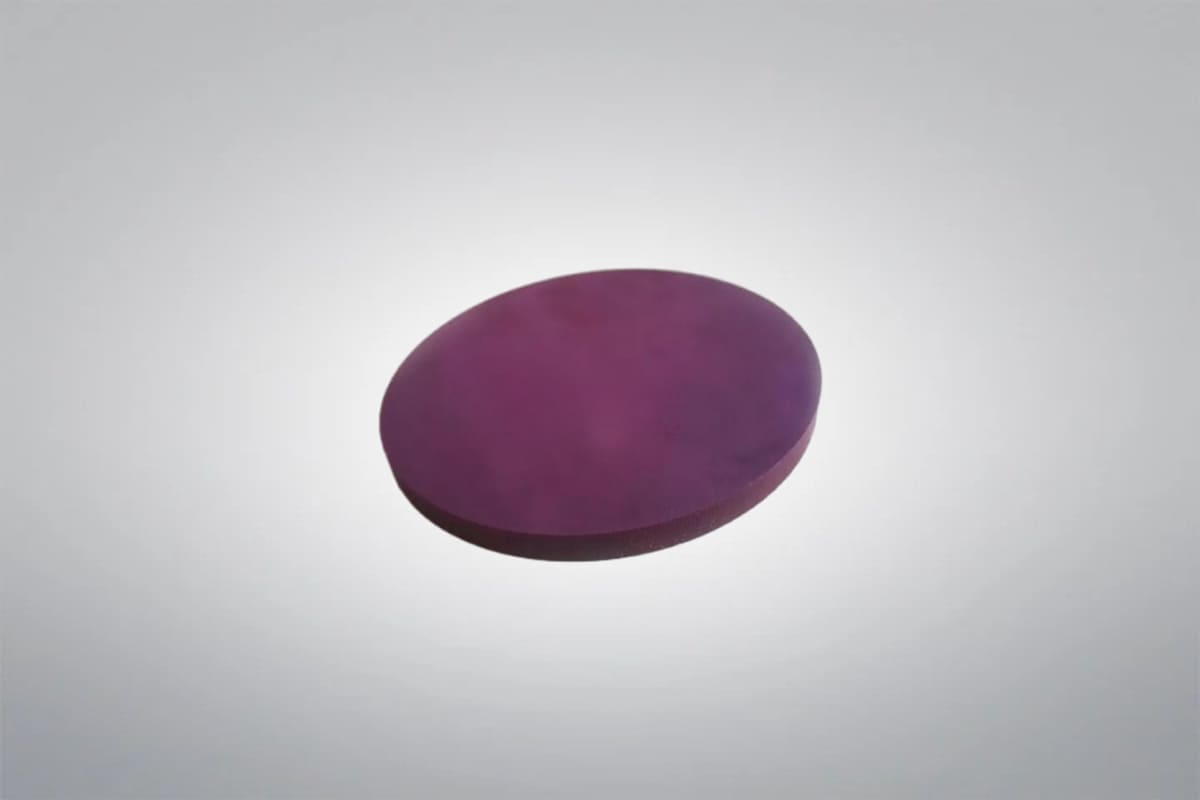

Lanthanum Hexaboride Sputtering Target
Lanthanum Hexaboride Sputtering Target is a high-performance material known for its excellent electron emission, low work function, and outstanding thermal and chemical stability. It is widely used in thin film deposition processes, particularly for electronic, optical, and vacuum device applications. With its high melting point and resistance to degradation under plasma conditions, the LaB6 sputtering target enables the production of uniform, conductive, and durable coatings. We can supply high-quality Lanthanum Hexaboride Custom Sputtering Target with various specifications and competitive prices, offering customized solutions to meet specific requirements.
Or email us at sales@heegermaterials.com.Lanthanum Hexaboride Sputtering Target Data Sheet
| Color: | Purple |
| Chemical Formula: | LaB6 |
| Dimension: | Standard or customized according to specific requirements |
| Purity: | 99.9% |
| Shape: | Disc/Rectangular/Tube |
| Bonding: | Unbonding/Bonding |
Lanthanum Hexaboride Sputtering Target Description
Lanthanum Hexaboride Sputtering Target offers a reliable solution for advanced coating applications requiring precision, stability, and efficiency. Known for its superior electron emission characteristics and resistance to high temperatures, this target material supports the creation of conductive films in demanding environments such as vacuum chambers and semiconductor fabrication lines. Its chemical resilience ensures consistent sputtering performance with minimal contamination, making it suitable for use in scientific instruments, display technologies, and aerospace components.
Lanthanum Hexaboride Sputtering Target Dimensions
| Circular Sputtering Targets | Diameter | 1.0” 2.0” 3.0” 4.0” 5.0” 6.0” up to 21” |
| Rectangular Sputtering Targets | Width x Length | 5” x 12” 5” x 15” 5” x 20” 5” x 22” 6” x 20” |
| Thickness | 0.125”, 0.25” | |
Lanthanum Hexaboride Sputtering Target Chemical Compositions
| LaB6 Purity: 99%, 99.9%, 99.9995%, B(% min.): 31% | |||
| Rare Earth Impurities | Non-RE Impurities | ||
| Ce | <120ppm | Fe | <250ppm |
| Pr | <150ppm | Si | <100ppm |
| Nd | <180ppm | Ca | <90ppm |
| Sm | <112ppm | C | <300ppm |
| Y | <250ppm | Mg | <100ppm |
| Ti | <100ppm | ||
Lanthanum Hexaboride Sputtering Target Features
- Low Work Function (~2.4 eV): Enables efficient electron emission, ideal for electronic and vacuum device coatings.
- High Thermal Stability: Maintains performance at elevated temperatures, suitable for demanding sputtering environments.
- Excellent Purity and Density: Ensures uniform film deposition with minimal contamination or defects.
- Superior Chemical Resistance: Stable against oxidation and corrosion under controlled atmosphere conditions.
- Customizable Shapes and Sizes: Available in various dimensions to match different sputtering systems and requirements.
Lanthanum Hexaboride Sputtering Target Applications
- Thin-Film Deposition: Used in PVD processes for coating semiconductors, optics, and display panels.
- Cathode Coatings: Enhances the performance of electron emitters in electron microscopes and ion sources.
- Vacuum Electronics: Suitable for high-efficiency emitter coatings in RF and microwave devices.
- Surface Engineering: Applied in functional coatings for wear resistance and electrical conductivity.
- Aerospace and Defense: Supports advanced material development for high-temperature and high-vacuum systems.
Lanthanum Hexaboride Ceramic Properties
Lanthanum Hexaboride Ceramic Material Machining
Lanthanum Hexaboride (LaB6) Ceramic is a specialized material prized for its excellent thermionic emission, high melting point, and chemical stability. These properties make it essential in electron emission applications but also pose challenges in machining due to its hardness and brittleness. Key machining considerations include:
- Cutting: Precision diamond-coated tools or laser cutting methods are necessary to achieve clean edges while preventing microcracks and surface damage.
- Grinding: Fine diamond grinding wheels provide the accuracy needed to maintain dimensional tolerances and surface smoothness, particularly for intricate or small components.
- Drilling: Ultrasonic or abrasive waterjet machining techniques are often used to create precise holes and features without inducing thermal stress or cracking.
- Surface Finishing: Polishing processes improve surface quality, reduce electron scattering, and enhance emission efficiency, which is critical for high-performance cathode applications.
Lanthanum Hexaboride Ceramic Packaging
Lanthanum hexaboride ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
