Pyrolytic Boron Nitride Crucible

Pyrolytic Boron Nitride Crucible HM

Pyrolytic Boron Nitride Crucible

Purity: 99.99%-99.999%

  • Custom sizes and standard sizes in stock
  • Quick Lead Time
  • Competitive Price

  • Pyrolytic Boron Nitride Crucible is a high-performance ceramic container with ultra-high purity and excellent high-temperature insulation properties. It is an ideal choice for Molecular Beam Epitaxy (MBE), Liquid Encapsulated Czochralski (LEC), Vertical Gradient Freeze (VGF), or OLED processes. As a leading supplier and manufacturer of premium pyrolytic boron nitride products, we can supply high-quality pyrolytic boron nitride crucibles with various specifications and competitive prices, offering customized solutions to meet specific requirements.
Get A Quote

Or email us at sales@heegermaterials.com.

Pyrolytic Boron Nitride Crucible Data Sheet

Reference:

PBN1317

Purity:

99.99%-99.999%

Capacity:

PBN OLED Crucible: 300 ml-1200 ml
PBN LEC Crucible: 50 ml-5 L
PBN MBE Crucible: 5 ml-300 ml
PBN VGF Crucible: 0.2 L-5 L

Color:

White

Density:

1.95-2.20 g/cm3

Production Method:

CVD

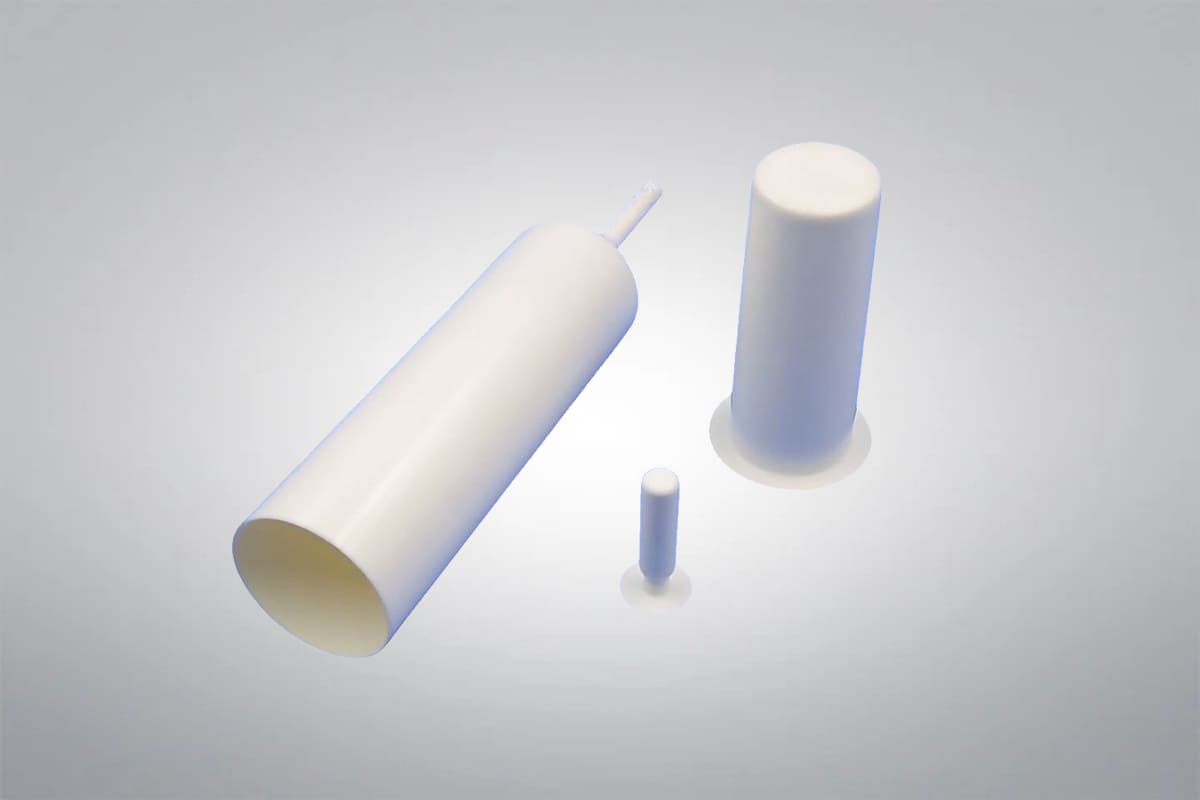

Pyrolytic Boron Nitride Crucible

Pyrolytic Boron Nitride Crucible is a high-purity and high-performance ceramic material. Unlike conventional hot-pressed boron nitride, it is produced through chemical vapor deposition (CVD) under vacuum conditions, using ammonia and boron halides without the need for traditional hot-press sintering or sintering agents. It offers ultra-high purity (up to 99.999%), exceptional high-temperature resistance (up to 2000℃), corrosion resistance, thermal conductivity, and electrical insulation. It is ideal for semiconductor crystal growth, high-temperature melting, and thin film preparation. Advanced Ceramics Hub can customize high-quality pyrolytic boron nitride crucibles for various application processes according to specific requirements, including PBN OLED Crucible, PBN MBE Crucible, PBN VGF Crucible, and PBN LEC Crucible.

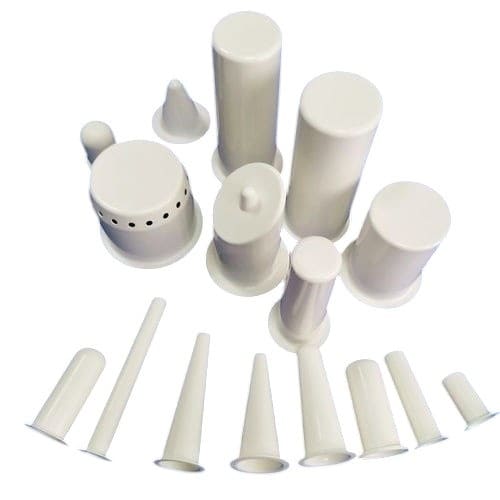

  • PBN crucible HM

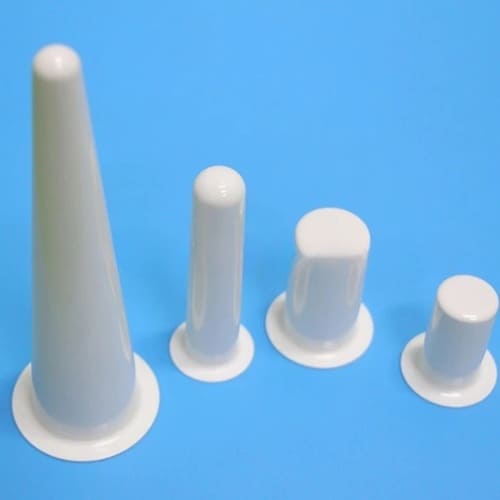

Pyrolytic Boron Nitride OLED Crucible

The PBN OLED Crucible is a type of PBN crucible used in OLED and CIGS vapor deposition technologies. It features ultra-high purity, chemical inertness, excellent high-temperature performance, and thermal stability, making it widely used in metal and semiconductor vapor deposition processes.

PBN OLED crucible HM

Specification

Inner Diameter (mm)

Lip Diameter (mm)

Height (mm)

300cc

55

70

160

500cc

55

82

190

580cc

62

84

186

700cc

61

85

240

1200cc

78

115

240

Pyrolytic Boron Nitride MBE Crucible

The PBN MBE Crucible is a high-performance crucible used in the Molecular Beam Epitaxy (MBE) process. It features ultra-high purity, chemical inertness, and excellent high-temperature stability, allowing it to withstand high temperatures during the MBE process without releasing gases or undergoing chemical reactions.

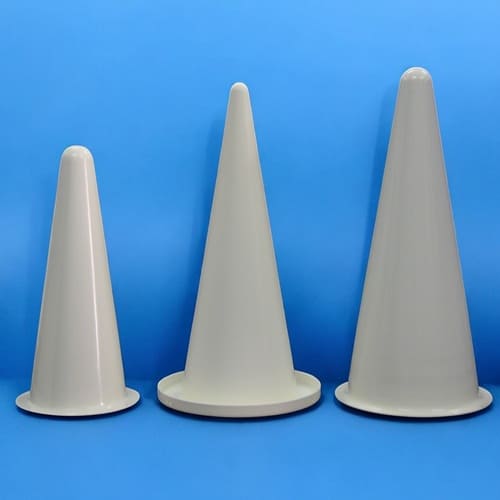

PBN MBE crucible HM

MBE equipment

Specification

Inner Diameter  (mm)

Lip Diameter (mm)

Height (mm)

Veeco

125cc

37

>55

118

Veeco

500cc

100

130

160

Veeco

1700cc

130

160

290

Veeco

3700cc

180

210

300

Riber

BN-100L

13

27

77

Riber

BN-125L

20

32

89

Riber

BN-135L

24

37

89

Riber

200cc

68

84

156

Note

The dimensions and shapes can be customized according to specific requirements.

Pyrolytic Boron Nitride VGF Crucible

The VGF crucible is a container used in the Vertical Gradient Freezing (VGF) technique for synthesizing crystals such as GaAs, InP, CZGaP, and Ge. PBN VGF crucibles can withstand high temperatures and provide a stable thermal environment, allowing the crystal to grow in a controlled manner from the bottom upwards. This results in single crystals with low defect density and high uniformity.

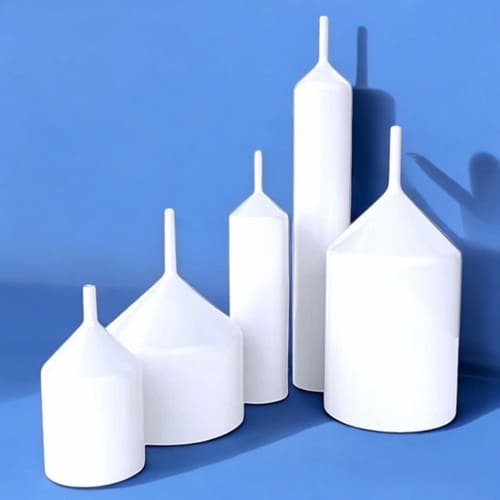

PBN VGF Crucible HM

Catalog No

Application

Inside Diameter

Height

Thickness

BV-2

VGF

2″

10″

0.035″

BV-3

VGF

3″

10″

0.035″

BV-4

VGF

4″

8″

0.035″

BV-5

VGF

5″

8″

0.04″

BV-6

VGF

6″

7″

0.04″

BV-8

VGF

8″

20″

0.08″

Pyrolytic Boron Nitride LEC Crucible

The PBN LEC crucible is a high-performance ceramic container specifically designed for the Liquid Encapsulated Czochralski (LEC) method, primarily used for growing compound semiconductor single crystals such as Gallium Arsenide (GaAs) and Indium Phosphide (InP). The exceptional chemical stability and corrosion resistance of the PBN LEC crucible ensure that it is not eroded by the melt or encapsulants while supporting the slow extraction of the crystal from the melt to form high-quality single crystals.

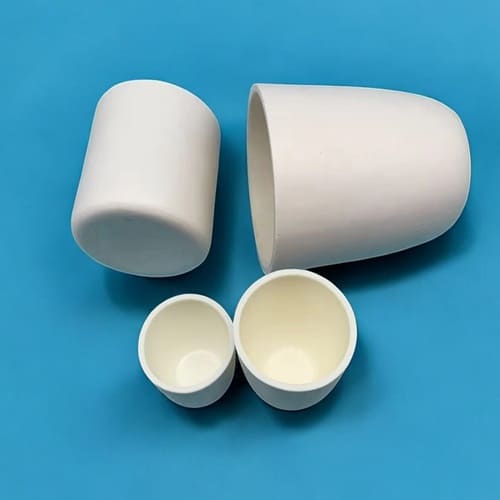

PBN LEC Crucible HM

Catalog No

Application

Inside Diameter

Height

Thickness

BV-3

LEC

3″

3″

0.03″

BV-4

LEC

4″

4″

0.035″

BV-5

LEC

5″

5″

0.035″

BV-6

LEC

6″

6″

0.04″

BV-7

LEC

7″

7″

0.04″

BV-8

LEC

8″

8″

0.04″

BL-14

LEC

14″

14″

0.08″

Pyrolytic Boron Nitride Crucible Available Specifications

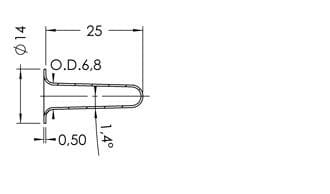

PBN C1 12
PBN C1 14
PBN C1 20
PBN C2 16

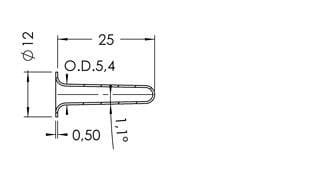

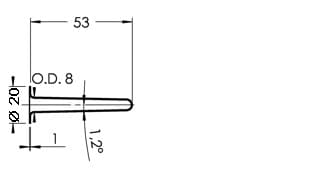

Code: PBN-C1-12 Capacity:1 cm³

Code: PBN-C1-14 Capacity:1 cm³

Code: PBN-C1-20 Capacity: 1.5 cm³

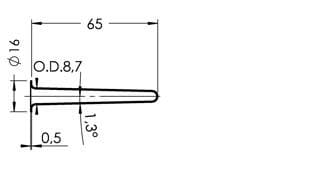

Code: PBN-C2-16 Capacity: 2cm³
PBN C2 22
PBN C5 16
PBN C5 27
PBN C5 29

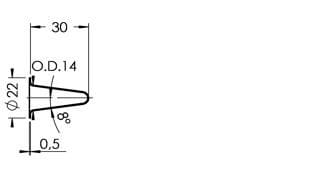

Code: PBN-C2-22 Capacity: 2 cm³

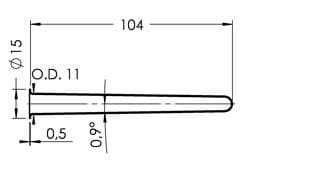

Code: PBN-C5-16 Capacity: 5 cm³

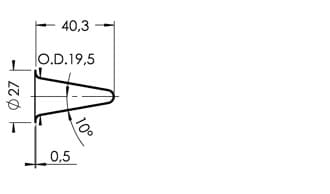

Code: PBN-C5-27 Capacity: 5 cm³

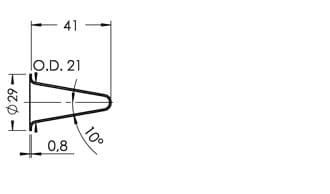

Code: PBN-C5-29 Capacity:5 cm³
PBN C8 27
PBN C10 22
PBN C12 36
PBN C12 37

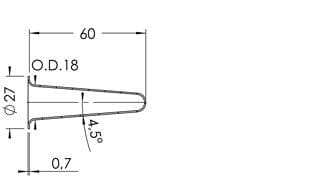

Code: PBN-C8-27 Capacity: 8 cm³

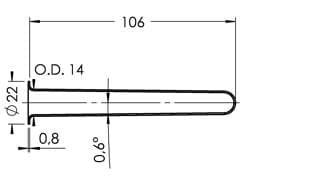

Code: PBN-C10-22 Capacity: 10 cm³

Code: PBN-C12-36 Capacity: 12 cm³

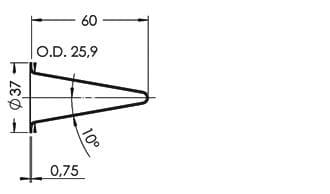

Code: PB-C12-37 Capacity: 12 cm³
PBN C16 36
PBN C25 33
PBN C25 51

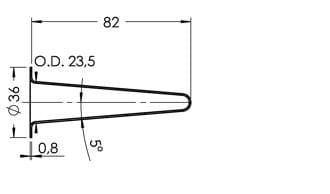

PBN C35 34

Code: PBN-C16-36 Capacity: 16 cm³

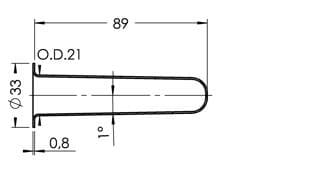

Code: PBN-C25-33 Capacity: 25 cm³

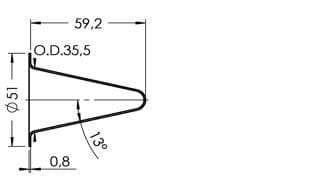

Code: PBN-C25-51 Capacity: 25 cm³

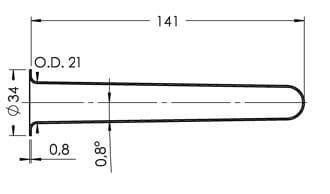

Code: PBN-C35-34 Capacity: 35 cm³
PBN C1 12
PBN C1 12
PBN C1 12
PBN C1 12

Code: PBN-C40-51 Capacity: 40 cm³

Code: PBN-C60-54 Capacity: 60 cm³

Code: PBN-C60-37 Capacity: 60cm³

Code: PBN-C70-60 Capacity: 70 cm³
PBN C1 12
PBN C1 12
PBN C1 12
PBN C1 12

Code: PBN-C75-77 Capacity: 75 cm³

Code: PBN-C80-54 Capacity: 80 cm³

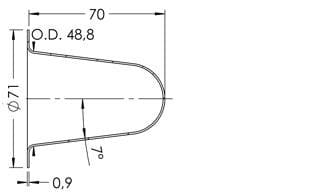

Code: PBN-C82-71 Capacity: 82 cm³

Code: PBN-C85-41 Capacity: 85 cm³
PBN C1 12
PBN C1 12
PBN C1 12
PBN C1 12

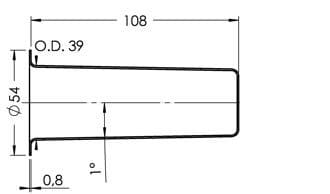

Code: PBN-C125-54 Capacity: 125 cm³

Code: PBN-C130-54 Capacity: 130 cm³

Code: PBN-C150-60 Capacity: 150 cm³

Code: PBN-C155-60 Capacity: 155 cm³
PBN C1 12
PBN C1 12
PBN C1 12
PBN C1 12

Code: PBN-C160-60 Capacity: 160 cm³

Code: PBN-C200-84 Capacity : 200 cm³

Code: PBN-C200-58 Capacity: 200 cm³

Code: PBN-C200-102 Capacity: 200 cm³
PBN C1 12

Code: PBN-C420-84 Capacity : 420 cm³

Pyrolytic Boron Nitride Crucible Advantages

  • High purity (99.99%-99.999%)
  • High density (>2.12 g/cm³)
  • No gas release at high temperatures
  • Uniform thickness, excellent heating consistency
  • Outstanding thermal conductivity and thermal shock resistance
  • High interlayer strength, easy to clean, reusable
  • Chemically inert, does not react with acids, alkalis, salts, or organic solvents at high temperatures

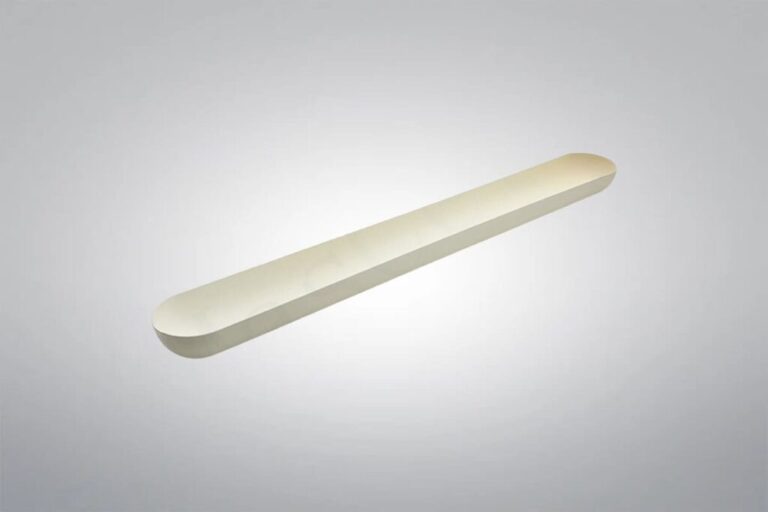

Pyrolytic Boron Nitride Boat Applications

  • Semiconductor Crystal Growth: PBN crucibles are ideal vessels for growing III-V compound semiconductor crystals (e.g., gallium arsenide GaAs, indium phosphide InP, and gallium nitride GaN) in processes such as Molecular Beam Epitaxy (MBE) and Liquid Phase Epitaxy (LPE).
  • High-temperature Melting: PBN crucibles are highly favored for melting precious metals (e.g., gold, silver, platinum) or specialty alloys due to their non-reactivity with most molten metals.
  • Thin Film Material Preparation: PBN crucibles are commonly used as evaporation source vessels in vacuum or thermal evaporation systems to prepare high-quality thin film materials. They are widely applicable in optical coatings and electronic device manufacturing.
  • OLED Displays HM
    OLED Displays
  • Electric and Electrical Equipments HM 1
    Electrical and Electronic Area

Pyrolytic Boron Nitride Material Properties

Mechanical Properties

Tensile Strength, Ultimate
（23°C)

40.0 MPa

103 MPa

Modulus of Elasticity

22.0 GPa

Flexural Strength

80.0 MPa

Compressive Strength

234 MPa

Poissons Ratio

0.25

Shear Modulus

8.80 GPa

Thermal Properties

Thermal Conductivity

2.00 W/m-K

60.0 W/m-K

Maximum Service Temperature, Air

750 °C

Maximum Service Temperature, Inert

2500 °C

Electrical Properties

Electrical Resistivity

1.00e+15 ohm-cm

Dielectric Constant

3.4

5.2

Dielectric Strength

200 kV/mm

Pyrolytic Boron Nitride Machining

Pyrolytic Boron Nitride Machining Center HM 3

The Advanced Ceramic Hub machining center is equipped with multiple CNC lathes and CNC milling machines, and it is backed by extensive machining experience. We offer customized pyrolytic boron nitride ceramic products and profiles with extremely tight tolerances, tailored to customer requirements. During the machining process, the following precautions should be observed:

  • Pyrolytic boron nitride ceramic materials can be machined using standard high-speed steel cutting tools. For harder and composite materials, carbide or diamond tools are recommended.
  • Grinding operations can be performed as needed, and standard taps and dies can be used to machine threads.
  • The machining process should always be kept dry, with no need for cutting oils or coolants.
  • Cutting tools should be sharp and clean, and tools with negative rake angles should not be used.
  • Care should be taken when clamping and securing materials to avoid applying excessive pressure. Climb milling techniques should be used to prevent edge and corner chipping.

Pyrolytic Boron Nitride Packaging

Pyrolytic Boron Nitride Ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination, and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.

ceramic products packing HM

Download

Get A Quote

We will check and get back to you in 24 hours

To customize your pyrolytic boron nitride crucible, please provide the following details:

  1. Dimensions: Length, height, and thickness.
  2. Purity of the material
  3. Design Features: Specify any special design requirements, such as openings, slots, or custom shapes for your process.
  4. Tolerances: Specify the tolerances you can apcept.
  5. Surface Finish: polished, rough, etc.
  6. Quantity of the products you need
  7. Alternatively, you can provide a drawing with your specifications.

Once we have these details, we can provide you with a quote within 24 hours.

We carry a wide variety of boron nitride products in stock, and for these, there is generally no minimum order requirement. However, for custom orders, we typically set a minimum order value of $200. The lead time for stock items is usually 1-2 weeks, while custom orders usually take 3-4 weeks, depending on the specifics of the order.

Pyrolytic Boron Nitride (PBN) is a boron nitride material with ultra-high purity, typically produced through a chemical vapor deposition (CVD) process under vacuum conditions. Unlike conventional hot-pressed boron nitride, PBN does not require the addition of sintering agents or undergoes the traditional hot-press sintering process. The production process is more refined, achieving a purity of over 99.999%. Pyrolytic Boron Nitride exhibits excellent resistance to acids, alkalis, molten metals, and other chemical corrosion, along with outstanding electrical insulation properties. It is widely used in high-tech fields such as semiconductor manufacturing, high-temperature furnaces, and aerospace systems.

Hexagonal boron nitride (h-BN): Its structure is similar to graphite, often referred to as “white graphite.” The layered structure gives it excellent lubricating properties, electrical conductivity, and high-temperature stability. It is the most widely used form, primarily applied in lubricants, insulating materials, and refractory materials.

Cubic boron nitride (c-BN): Its structure resembles that of diamond, offering extremely high hardness and thermal conductivity. C-BN is mainly used in the production of cutting tools and abrasives, and is widely applied in the field of machining.

Pyrolytic Boron Nitride (PBN) is primarily produced through a chemical vapor deposition (CVD) process. In this process, precursor gases such as ammonia (NH₃) and boron trichloride (BCl₃) react under vacuum conditions, forming boron nitride films. The reaction typically occurs at high temperatures, where the gases decompose and the boron nitride deposits as a solid on the substrate surface. This production process ensures that Pyrolytic Boron Nitride materials exhibit excellent chemical stability and electrical insulation properties.

Advanced Ceramic Hub, established in 2016 in Colorado, USA, is a specialized supplier and manufacturer of graphene products. With extensive expertise in supply and export, we offer competitive pricing and customized solutions tailored to specific requirements, ensuring outstanding quality and customer satisfaction. As a professional provider of ceramics, refractory metals, specialty alloys, spherical powders, and various advanced materials, we serve the research, development, and large-scale industrial production needs of the scientific and industrial sectors.

Pyrolytic Boron Nitride Crucible
