Spanish Magnesia Stabilized Zirconia Tube

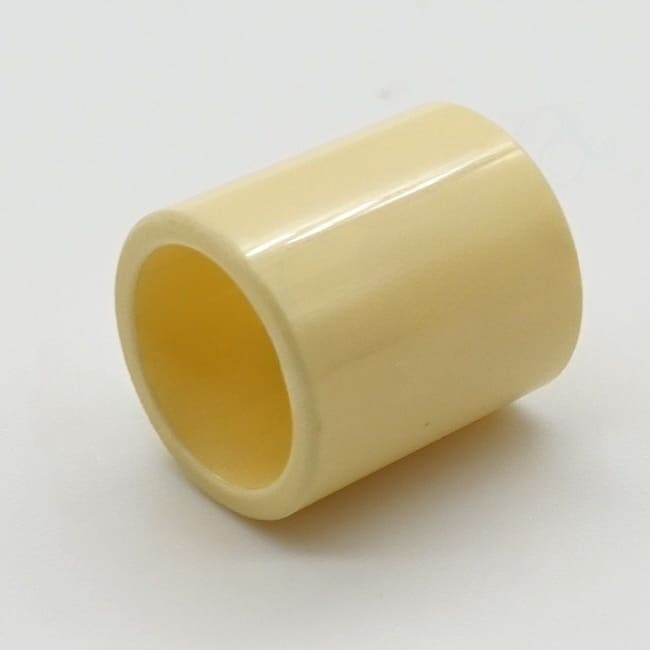

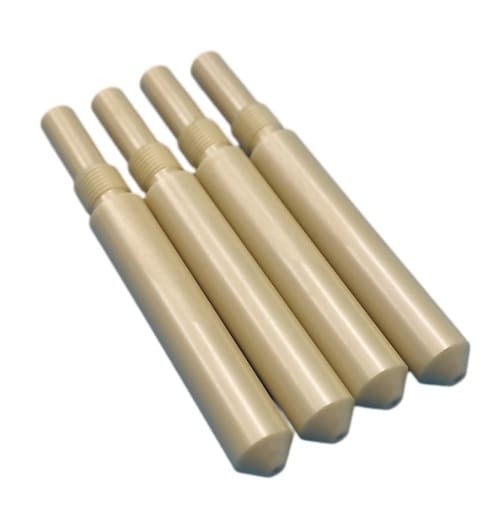

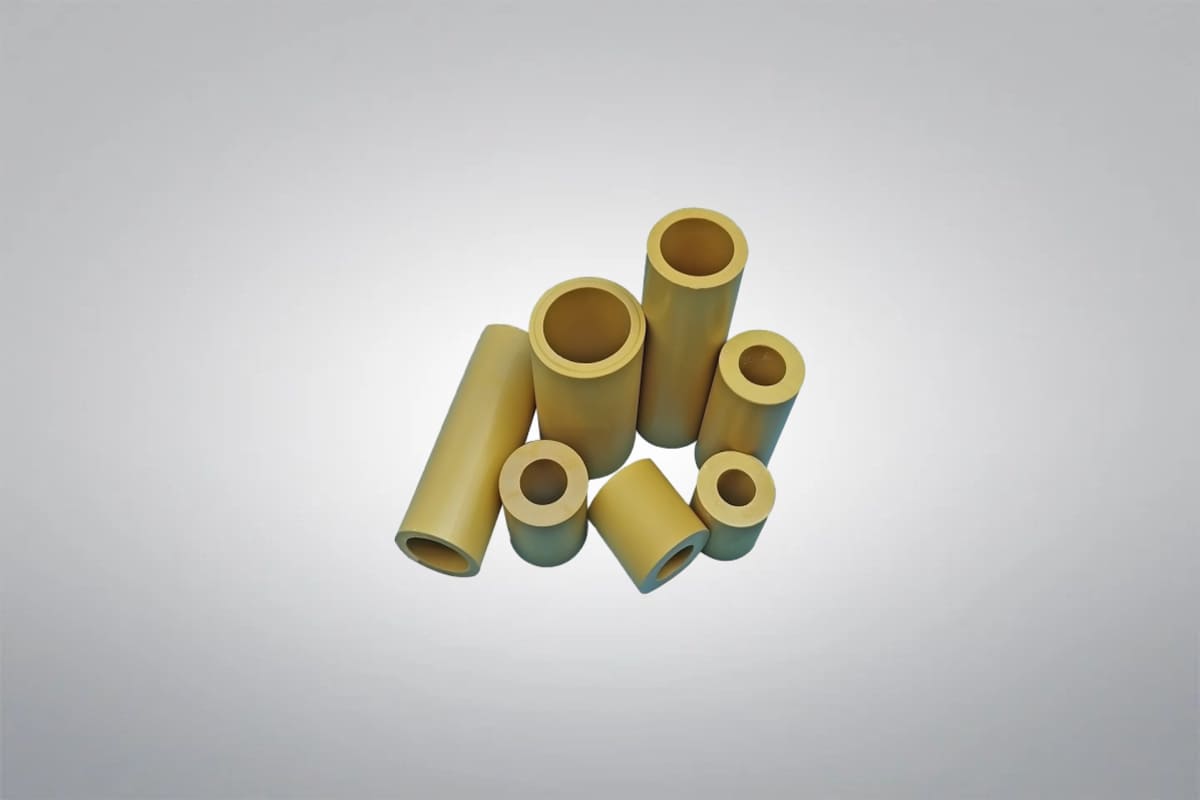

Magnesia Stabilized Zirconia Tube
Magnesia Stabilized Zirconia Tube is a high-performance ceramic product known for its excellent mechanical strength, thermal stability, and fracture toughness. Stabilized with magnesia, this zirconia tube resists wear and corrosion while maintaining dimensional stability under mechanical and thermal stress. It is widely used in harsh environments across aerospace, energy systems, medical devices, and electronic components, offering reliable performance where both strength and durability are critical. We can supply high-quality magnesia stabilized zirconia ceramic tube with various specifications and competitive prices, offering customized solutions to meet specific requirements.
Or email us at sales@heegermaterials.com.Magnesia Stabilized Zirconia Tube Data Sheet
| Color: | Yellow |
| Size: | Customized |
| Density (g/cm³): | 5.70 |
| Hardness (HV 0.5): | 1100 |
| Fracture Toughness (MPa·m¹/²): | 6-7 |
| Flexural Strength (@RT) (MPa): | 500 |
| Compressive Strength (@RT) (MPa): | 2000 |
| Thermal Conductivity (@RT) (W/mK): | 2.2 |
| Thermal Expansion Coefficient (20-1000℃) (10⁻⁶/℃): | 10.3 |
| Thermal Shock Resistance (ΔT℃): | 450 |
| Maximum Operating Temperature (@RT) (℃): | 2000 |
Magnesia Stabilized Zirconia Tube Description
Magnesia stabilized zirconia tube is engineered for demanding industrial applications that require a balance of toughness, stability, and chemical resistance. By incorporating magnesia as a stabilizer, this ceramic maintains its structure without phase transformation, even under mechanical stress or corrosive conditions. Its dense microstructure offers excellent resistance to abrasion and chemical attack, making it suitable for aggressive working environments. Whether used in insulation systems, sensor protection, or structural supports, this material delivers long-term reliability in critical systems.
Magnesia Stabilized Zirconia Tube Features
- Excellent thermal shock resistance for use in fluctuating temperature environments
- High fracture toughness and flexural strength for improved durability
- Strong resistance to corrosion from acids, alkalis, and molten metals
- Stable crystal structure with minimal phase change under stress
- Low thermal conductivity, providing effective insulation in high-heat applications
Magnesia Stabilized Zirconia Tube Applications
- High-Temperature Insulation: Acts as a thermal barrier in furnaces, reactors, and other high-heat environments.
- Solid Oxide Fuel Cells (SOFC): Used as electrolyte tubes due to ionic conductivity and thermal stability.
- Aerospace Components: Supports structural and insulating functions in propulsion and exhaust systems.
- Analytical Instruments: Serves in gas analysis and high-temperature chemical testing setups.
- Corrosive Fluid Transport: Suitable for delivering reactive or molten materials in chemical and metallurgical processes.
Magnesia Stabilized Zirconia Ceramic Machining

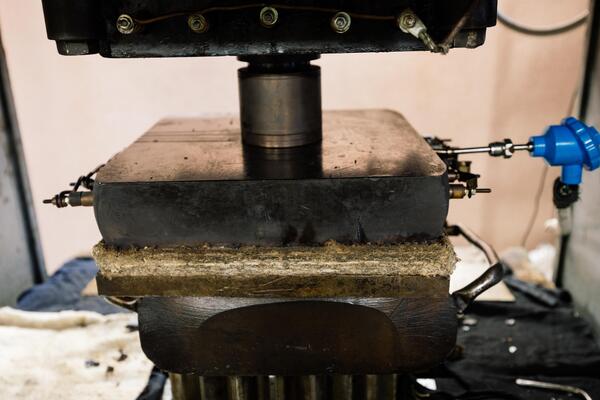

Magnesia Stabilized Zirconia Ceramic Machining
Magnesia stabilized zirconia (MSZ) ceramics can be machined before sintering (green or bisque state) and, to a much lesser extent, after full densification. In the green state, the material is softer and easier to process, allowing for shaping and drilling of intricate features. However, sintering leads to a predictable shrinkage of around 15–20%, requiring adjustments in the initial design to meet final tolerances. Once fully sintered, MSZ becomes extremely hard and wear-resistant, making machining difficult and limited to precision diamond grinding.
Machining Methods and Considerations
- Green/Bisque Machining: Enables efficient shaping and forming prior to sintering; useful for complex geometries.
- Sintering Shrinkage: Final dimensions may shrink by 15–20%, so pre-machining must account for size reduction.
- Post-Sintering Machining: Only feasible with diamond tools under controlled conditions due to the ceramic’s hardness and toughness.
- Handling During Machining: Despite its toughness, sintered MSZ can chip or crack under stress or improper handling.
- Machining Difficulty: Dense MSZ is labor-intensive to grind and requires advanced CNC and diamond tooling setups.
Magnesia Stabilized Zirconia Ceramic Packaging
Magnesia stabilized zirconia ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
