Spanish Lanthanum Hexaboride Rod/Bar

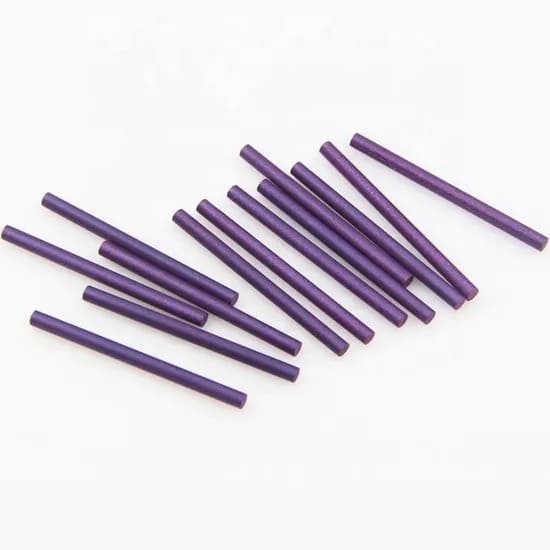

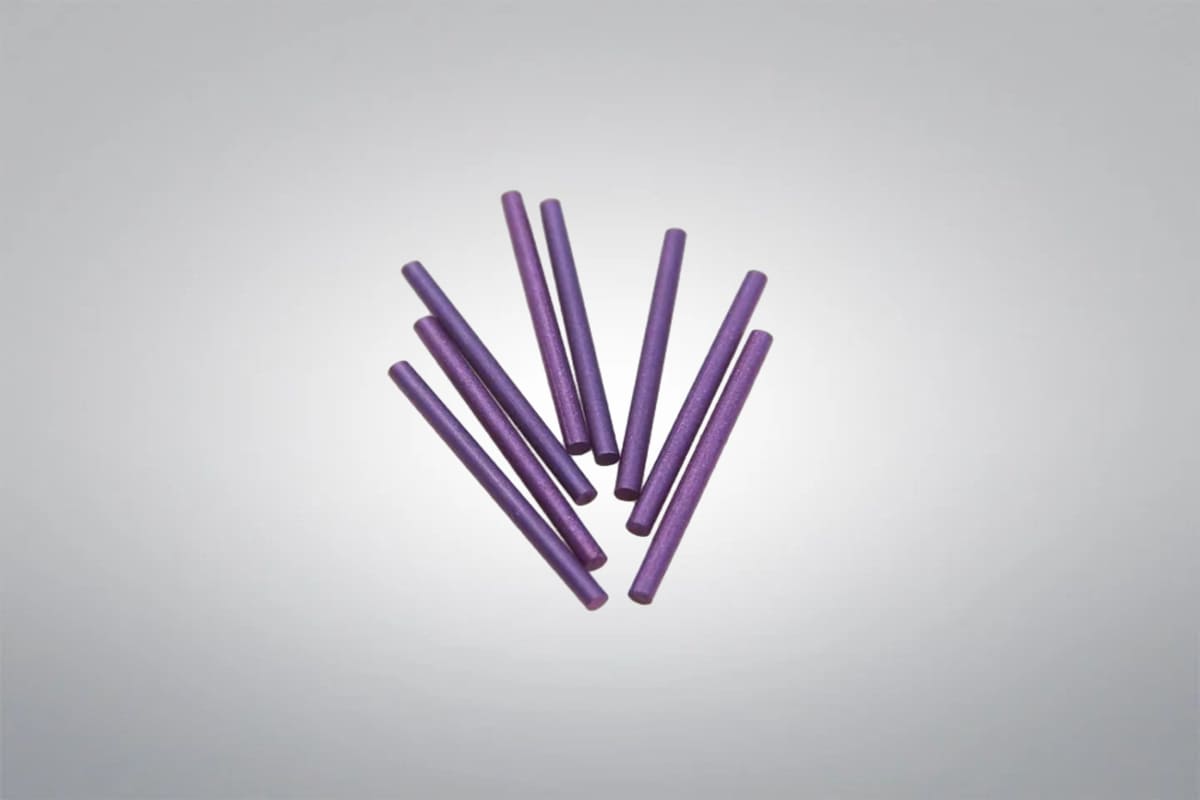

Lanthanum Hexaboride Rod/Bar
Lanthanum Hexaboride Rod/Bar delivers excellent electrical conductivity, thermal stability, and low vapor pressure, making it ideal for high-temperature electron emission applications. Known for its resistance to chemical degradation and prolonged lifespan, LaB6 rod/bar is widely used in scanning electron microscopes (SEM), transmission electron microscopes (TEM), X-ray generation, and electron beam welding systems. Its consistent performance under vacuum and extreme heat ensures precise electron output and long-term operational reliability. We can supply high-quality yttria stabilized zirconia rod/bar with various specifications and competitive prices, offering customized solutions to meet specific requirements.
Or email us at sales@heegermaterials.com.Lanthanum Hexaboride Rod/Bar Data Sheet
| Color: | Purple |
| Chemical Formula: | LaB6 |
| Diameter Range: | customized |
| Length Range: | customized |
Lanthanum Hexaboride Rod/Bar Description
Lanthanum Hexaboride Rod/Bar is a highly stable, conductive ceramic material engineered for demanding electron emission applications. With its low work function (~2.4 eV), high melting point (~2528°C), and exceptional resistance to chemical corrosion, LaB6 enables efficient thermionic electron emission at relatively low temperatures. This makes it a preferred cathode material in a wide range of high-tech systems. It is commonly used in RF ion sources, mass spectrometers, Hall thrusters, plasma generators, and micro-mirror devices, where precision, longevity, and thermal stability are critical. In addition to its excellent emission characteristics, LaB6 rods/bars offer consistent performance under vacuum and high-temperature environments, with minimal evaporation or degradation over time.
Lanthanum Hexaboride Rod/Bar Chemical Compositions
| LaB6 Purity: 99%, 99.9%, 99.9995%, B(% min.): 31% | |||
| Rare Earth Impurities | Non-RE Impurities | ||
| Ce | <120ppm | Fe | <250ppm |
| Pr | <150ppm | Si | <100ppm |
| Nd | <180ppm | Ca | <90ppm |
| Sm | <112ppm | C | <300ppm |
| Y | <250ppm | Mg | <100ppm |
| Ti | <100ppm | ||
Lanthanum Hexaboride Rod/Bar Features
- Excellent Thermal Shock Resistance: Lanthanum Hexaboride Rod/Bar can withstand rapid temperature changes without cracking or deformation, making it ideal for high-heat, cyclic environments.
- High Electrical Conductivity: The Lanthanum Hexaboride Rod/Bar delivers reliable electrical performance, ensuring consistent current flow in advanced emission systems.
- Superior Chemical and Oxidation Resistance: Lanthanum Hexaboride Rod/Bar resists corrosion and oxidation even in aggressive environments, contributing to long service life.
- High Electron Emission Efficiency: With a low work function, Lanthanum Hexaboride Rod/Bar enables efficient thermionic emission, making it an excellent cathode material.
- Stable Performance in Vacuum: Lanthanum Hexaboride Rod/Bar operates with minimal evaporation and maintains structural stability in high-vacuum systems, supporting continuous, precise electron output.
Lanthanum Hexaboride Rod/Bar Applications
- Thermionic Emission Cathodes: Lanthanum Hexaboride Rod/Bar is widely used as a high-efficiency electron emitter in thermionic cathodes for electron microscopes, X-ray sources, and electron beam instruments.
- Plasma Sources for PECVD: In plasma-enhanced chemical vapor deposition (PECVD) systems, Lanthanum Hexaboride Rod/Bar serves as a robust electron source for initiating and sustaining plasma under high vacuum conditions.
- Vacuum Electron Beam Welding Machines: Lanthanum Hexaboride Rod/Bar provides stable electron emission in high-energy vacuum welding systems, enabling precision joining of metals in aerospace and automotive industries.
- Electron Beam Surface Treatment Devices: Lanthanum Hexaboride Rod/Bar is used in surface hardening and modification equipment, where its thermal stability ensures consistent performance under intense energy beams.

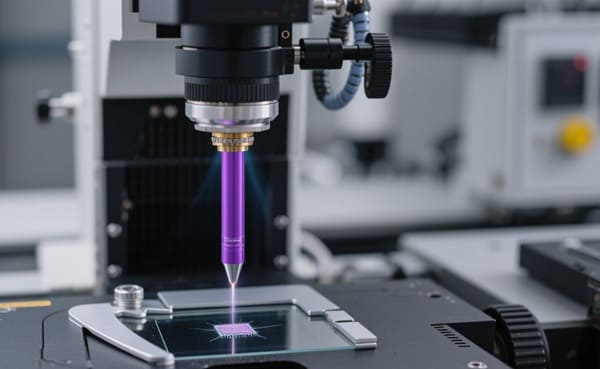

- Advanced Electron Microscopy Systems: Lanthanum Hexaboride Rod/Bar is a preferred cathode material in SEM, TEM, and electron beam lithography tools, where high resolution and low noise are critical for nanoscale imaging and fabrication.
Lanthanum Hexaboride Ceramic Properties
Lanthanum Hexaboride Ceramic Material Machining
Lanthanum Hexaboride (LaB6) Ceramic is a specialized material prized for its excellent thermionic emission, high melting point, and chemical stability. These properties make it essential in electron emission applications but also pose challenges in machining due to its hardness and brittleness. Key machining considerations include:
- Cutting: Precision diamond-coated tools or laser cutting methods are necessary to achieve clean edges while preventing microcracks and surface damage.
- Grinding: Fine diamond grinding wheels provide the accuracy needed to maintain dimensional tolerances and surface smoothness, particularly for intricate or small components.
- Drilling: Ultrasonic or abrasive waterjet machining techniques are often used to create precise holes and features without inducing thermal stress or cracking.
- Surface Finishing: Polishing processes improve surface quality, reduce electron scattering, and enhance emission efficiency, which is critical for high-performance cathode applications.
Lanthanum Hexaboride Ceramic Packaging
Lanthanum hexaboride ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
