Spanish Beryllium Oxide Tube/Pipe

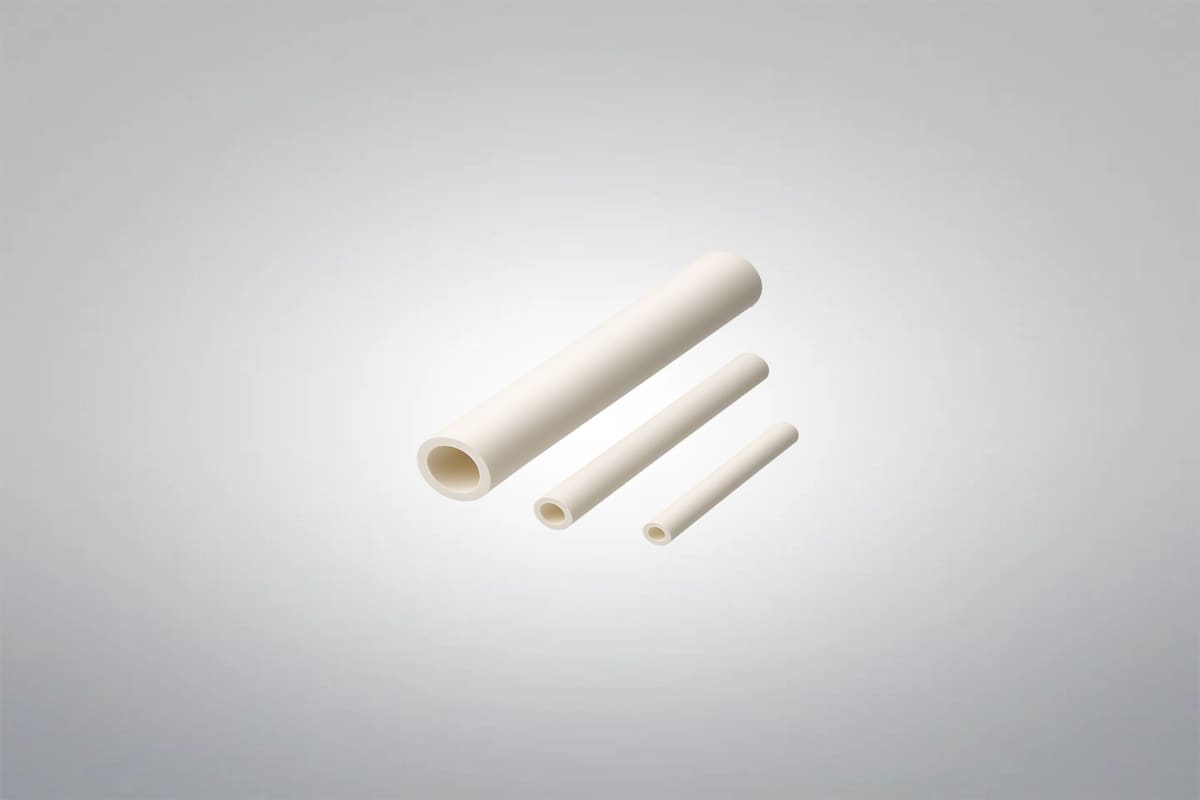

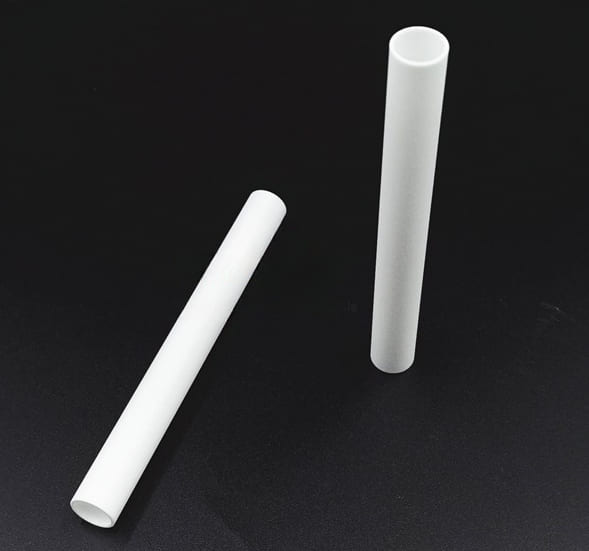

Beryllium Oxide Tube/Pipe
Beryllium Oxide Tube/Pipe offers exceptional thermal conductivity, high dielectric strength, and excellent resistance to thermal shock, making it an ideal choice for high-power electronic and microwave applications. With a combination of electrical insulation and heat dissipation capabilities, it’s widely used in vacuum electronics, RF devices, and aerospace components. Its high melting point and mechanical stability also make it suitable for use in extreme environments. We can supply high-quality Beryllium Oxide Tube/Pipe with various specifications and competitive prices, offering customized solutions to meet specific requirements.
Or email us at sales@heegermaterials.com.Beryllium Oxide Tube/Pipe Data Sheet
| Color: | White |
| Chemical Formula: | BeO |
| Dimension: | customized |
| Machining Accuracy: | 0.01 mm |
| Surface Roughness: | 0.1 μm |
Beryllium Oxide Tube/Pipe Description
Beryllium Oxide Tube/Pipe delivers exceptional thermal conductivity combined with strong electrical insulation, making it a top choice for high-power electronic and microwave systems. It performs reliably under extreme temperatures and maintains structural integrity in vacuum, high-voltage, or chemically reactive environments. With low dielectric constant and high strength, it supports applications in aerospace, RF electronics, and advanced semiconductor systems. Its precision form and thermal shock resistance also make it suitable for demanding heat transfer setups.
Beryllium Oxide Tube/Pipe Chemical Compositions
| Element | Content (ppm) |
|---|---|
| Boron (B) | 2 |
| Aluminum (Al) | 46 |
| Chromium (Cr) | 8 |
| Iron (Fe) | 32 |
| Magnesium (Mg) | 1000 |
| Manganese (Mn) | 2 |
| Nickel (Ni) | 9 |
| Titanium (Ti) | 5 |
| Sodium (Na) | 173 |
| Calcium (Ca) | 31 |
| Silicon (Si) | 2100 |
Beryllium Oxide Tube/Pipe Features
- High Thermal Conductivity: Offers superior heat dissipation, comparable to metals like aluminum, making it ideal for high-power thermal management.
- Excellent Electrical Insulation: Provides strong dielectric properties, ensuring safety and performance in high-voltage systems.
- Mechanical Strength and Rigidity: Maintains structural integrity under stress, even at elevated temperatures.
- Thermal Shock Resistance: Withstands rapid temperature changes without cracking, perfect for dynamic thermal environments.
- Chemical Stability: Resists corrosion and degradation in harsh chemical and vacuum environments.
Beryllium Oxide Tube/Pipe Applications
- RF and Microwave Systems: Used as insulating and heat-dissipating supports in high-frequency electronics.
- Laser Technology: Ideal for housing and isolating optical components exposed to high heat.
- Aerospace Electronics: Ensures reliability in avionics and satellite systems exposed to extreme conditions.
- Semiconductor Processing: Utilized in vacuum chambers and reactors for its purity and resistance to outgassing.
- Nuclear Instrumentation: Suitable for components exposed to high radiation and heat loads.
Beryllium Oxide Ceramic Properties
Beryllium Oxide Ceramic Material Machining
Beryllium Oxide (BeO) Ceramic is valued for its exceptional thermal conductivity, electrical insulation, and high melting point. These qualities make it widely used in electronics and high-temperature applications, but its hardness and brittleness require special machining approaches. Key machining considerations include:
- Cutting: Precision diamond-coated tools or laser cutting are essential to avoid microcracks and maintain clean edges, as BeO’s brittleness can lead to chipping during conventional cutting.
- Grinding: Fine diamond grinding wheels enable accurate shaping and surface finishing while minimizing the risk of fractures, especially important for small or complex parts.
- Drilling: Ultrasonic machining or abrasive waterjet methods are preferred to produce precise holes without causing thermal damage or cracks.
- Surface Finishing: Polishing techniques enhance surface smoothness and electrical insulation properties, crucial for applications demanding high dielectric performance and reliability.
Beryllium Oxide Ceramic Packaging
Beryllium oxide ceramic products are typically packaged in vacuum-sealed bags to prevent moisture or contamination and wrapped with foam to cushion vibrations and impacts during transport, ensuring the quality of products in their original condition.
