Spanish Why Cubic Boron Nitride is Ideal for High-Power Semiconductor Devices?
Semiconductor devices are the backbone of modern electronics, playing a critical role in everything from consumer electronics to power grids and communication systems. As technology advances, the demand for semiconductor materials that can withstand higher powers, temperatures, and stresses is growing rapidly. One material that stands out for its unique properties in high-power applications is cubic boron nitride (cBN). Known for its exceptional hardness, high thermal conductivity, and chemical stability, cBN is increasingly being explored for use in high-power semiconductor devices like power transistors, diodes, and other power electronics. This article will explore why cubic boron nitride is becoming a go-to material in this field, focusing on its key properties and advantages over traditional semiconductor materials.
The significance of c-BN lies in its ability to address the limitations of traditional silicon-based semiconductors, which struggle under extreme conditions. As industries push for higher efficiency, reduced energy losses, and compact designs, wide-bandgap materials like c-BN offer transformative potential. This article will delve into the science behind c-BN’s suitability for high-power applications, offering insights into its role in shaping the future of power electronics. From electric vehicle inverters to grid-scale power converters, c-BN’s unique attributes position it as a game-changer in the semiconductor landscape.
At Advanced Ceramics Hub, we specialize in high-quality boron nitride products with various forms and specifications, ensuring optimal performance for industrial and scientific applications.
Background on High-Power Semiconductor Devices
High-power semiconductor devices, such as power transistors, diodes, and thyristors, are critical components in systems that manage large electrical loads, including power converters, inverters, and motor drives. These devices operate under demanding conditions, handling voltages from hundreds to thousands of volts and currents in the tens to hundreds of amperes. Traditional silicon (Si) semiconductors, with a bandgap of ~1.1 eV, have served as the backbone of power electronics for decades but face limitations in high-voltage and high-temperature environments. Silicon’s low breakdown voltage and poor thermal conductivity lead to inefficiencies, heat buildup, and device failure under extreme loads.
The advent of wide-bandgap (WBG) materials, such as silicon carbide (SiC, ~3.2 eV), gallium nitride (GaN, ~3.4 eV), and cubic boron nitride (c-BN, ~6.1–6.4 eV), has revolutionized power electronics. WBG materials enable devices to operate at higher voltages, frequencies, and temperatures with lower energy losses, improving efficiency and reducing system size. c-BN, with its zinc-blende crystal structure similar to diamond, stands out due to its exceptional thermal and electrical properties. Its potential to outperform SiC and GaN in certain applications makes it a compelling candidate for next-generation power devices.
Comparison of Semiconductor Materials
| Material | Bandgap (eV) | Thermal Conductivity (W/m·K) | Breakdown Voltage (MV/cm) | Applications |
| Silicon (Si) | ~1.1 | ~150 | ~0.3 | General-purpose electronics |
| SiC | ~3.2 | ~100–150 | ~2–3 | EV inverters, power converters |
| GaN | ~3.4 | ~130–200 | ~3–4 | RF devices, fast chargers |
| c-BN | ~6.1–6.4 | ~740–1300 | ~5–10 | High-power, high-voltage devices |

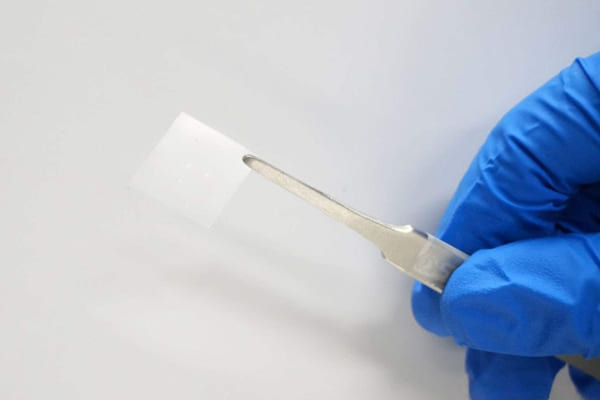

Key Properties of Cubic Boron Nitride
Cubic boron nitride (c-BN) possesses a unique combination of extreme properties that make it invaluable for advanced industrial applications. Below is a technical breakdown of its most critical characteristics:
1. Wide Bandgap
Cubic boron nitride boasts an ultra-wide bandgap of approximately 6.1–6.4 eV, one of the largest among semiconductor materials, surpassed only by diamond (~5.5 eV). This wide bandgap allows c-BN to withstand extremely high electric fields before breaking down, with a breakdown voltage estimated at 5–10 MV/cm, significantly higher than Si (~0.3 MV/cm), SiC (~2–3 MV/cm), and GaN (~3–4 MV/cm). This property is crucial for high-power semiconductor devices, enabling them to operate at voltages exceeding 10 kV, ideal for applications like grid-scale power converters and electric vehicle drivetrains.
The wide bandgap also minimizes leakage current, ensuring low energy losses even at elevated temperatures (up to ~500°C or higher). This thermal resilience makes c-BN suitable for harsh environments, such as aerospace or deep-well drilling electronics, where silicon-based devices would fail. Additionally, the wide bandgap supports high-frequency operation, reducing switching losses in power electronics and improving overall system efficiency.
Benefits of c-BN’s Wide Bandgap:
- High breakdown voltage for ultra-high-voltage applications.
- Low leakage current at high temperatures.
- High-frequency operation with reduced switching losses.
2. High Thermal Conductivity
One of c-BN’s standout properties is its exceptional thermal conductivity, ranging from 740–1300 W/m·K for single crystals, surpassing SiC (~100–150 W/m·K), GaN (~130–200 W/m·K), and even approaching diamond (~2000–2500 W/m·K). This high thermal conductivity enables efficient heat dissipation, a critical requirement for high-power semiconductor devices that generate significant heat during operation. By rapidly transferring heat away from active device regions, c-BN prevents thermal runaway, extends device lifespan, and maintains performance under high-power conditions.
In applications like power transistors or inverters, where heat buildup can degrade efficiency and reliability, c-BN’s ability to manage thermal loads is a game-changer. For example, in electric vehicle inverters, c-BN-based devices can operate at higher power densities without requiring bulky cooling systems, reducing system weight and cost. This property also supports compact device designs, as less thermal management infrastructure is needed, making c-BN ideal for space-constrained applications.
Thermal Conductivity Comparison
| Material | Thermal Conductivity (W/m·K) | Impact on Devices |
| Silicon | ~150 | Limited heat dissipation, needs cooling |
| SiC | ~100–150 | Moderate heat management |
| GaN | ~130–200 | Good heat dissipation |
| c-BN | ~740–1300 | Superior heat dissipation, compact design |
3. Excellent Mechanical Properties
Cubic Boron Nitride (c-BN) is second only to diamond in terms of hardness, making it highly resistant to wear and deformation. This property ensures the durability of devices made with cBN, especially in high-stress environments where physical wear can degrade performance.
| Property | Value | Comparison to Diamond |
| Hardness (Knoop) | 45-50 GPa | 70-100 GPa |
| Fracture Toughness | 6.8-8.2 MPa·m¹ᐟ² | 3.4-5.0 MPa·m¹ᐟ² |
| Young’s Modulus | 850 GPa | 1200 GPa |
| Compressive Strength | 6.5-7.5 GPa | 8-10 GPa |
Key Advantage: c-BN maintains its mechanical integrity at temperatures where diamond oxidizes (>800°C).
4. Good Chemical Stability
Cubic Boron Nitride has remarkable chemical stability. Its chemical inertness, even in harsh environments like acidic or oxidative conditions, protects devices from degradation, making c-BN suitable for applications in extreme settings, such as industrial power systems or aerospace electronics.
The durability of c-BN translates to longer device lifespans and reduced maintenance costs, critical for high-power systems where reliability is paramount. For example, in grid-scale inverters exposed to fluctuating temperatures and corrosive environments, c-BN’s stability ensures consistent performance over decades. This contrasts with other materials like GaN, which may be more susceptible to chemical degradation under certain conditions.
- Inertness: Resists molten ferrous metals (unlike diamond)
- Oxidation: Forms protective B₂O₃ layer at 1000°C (vs. diamond graphitization at 700°C)
- Corrosion Resistance: Unaffected by acids/alkalis except hot alkaline oxides
5. Electrical Properties
c-BN exhibits high electrical resistivity (~10¹⁰–10¹⁴ Ω·cm) in its intrinsic form, making it an excellent insulator at room temperature. However, its ability to be doped with impurities, such as silicon (n-type) or beryllium (p-type), allows it to function as a semiconductor with tunable conductivity. This versatility is critical for fabricating high-power devices like diodes and transistors, where precise control over electrical properties is needed. Unlike silicon, which suffers from increased leakage current at high temperatures, c-BN maintains low conductivity in its insulating regions, ensuring reliable operation under extreme conditions.
The potential for both p-type and n-type doping, though challenging due to c-BN’s strong covalent bonds, enables the creation of p-n junctions essential for semiconductor devices. Recent advances in doping techniques, such as ion implantation, have improved c-BN’s viability as a semiconductor material. Its negligible electronic conductivity (<10⁻¹² S/cm) in undoped form further ensures that c-BN-based devices avoid unwanted current paths, enhancing efficiency and safety in high-voltage applications.
| Parameter | Value | Application Impact |
| Bandgap | 6.4 eV (indirect) | Deep-UV optoelectronics |
| Resistivity | >10¹⁴ Ω·cm (undoped) | Ideal high-voltage insulation |
| Breakdown Field | 7-10 MV/cm | 3× higher than SiC |
| Electron Mobility | ~300 cm²/V·s (n-type) | Potential for RF devices |
6. Emerging Quantum Properties
- Spin Qubits: Nuclear spins of ¹⁰B and ¹¹N show promise for quantum computing
- Single-Photon Emission: Demonstrated at room temperature (2023 study)
- NV Centers: Alternative to diamond NV with longer coherence times
Comparison to Other Superhard Materials
| Property | c-BN | Diamond | SiC | AlN |
| Hardness | ★★★★☆ | ★★★★★ | ★★★☆☆ | ★★☆☆☆ |
| Thermal Cond. | ★★★☆☆ | ★★★★★ | ★★★★☆ | ★★☆☆☆ |
| Bandgap | ★★★★★ | ★★★★☆ | ★★★☆☆ | ★★★★☆ |
| Cost | $$$$ | $$$$$ | $$ | $ |
Looking for top-quality boron nitride products? Explore Advanced Ceramics Hub’s selection.
Advantages of c-BN Over Other Wide-Bandgap Materials
Cubic boron nitride (c-BN) stands out among wide-bandgap (WBG) semiconductors due to its unique combination of extreme thermal, electrical, and chemical properties. Below is a detailed comparison of SiC, GaN, and diamond in high-power and high-temperature applications.
1. Superior Thermal and Chemical Stability
| Property | c-BN | SiC | GaN | Diamond |
| Max Operating Temp (Inert) | 1400°C | 1000°C | 800°C | 800°C (oxidizes) |
| Oxidation Resistance | Forms protective B₂O₃ at 1000°C | SiO₂ passivation | Degrades above 700°C | Graphitizes at 700°C |
| Reactivity with Metals | Inert to Fe/Ni | Reacts with molten Al | Reacts with Cu | Reacts with Fe |
c-BN is the only WBG material stable in molten steel and high-oxygen environments, making it ideal for:
- High-temperature sensors (e.g., turbine monitoring)
- Cutting tools for ferrous alloys (no diamond-like graphitization)
2. Unmatched Breakdown Voltage & Power Handling
| Parameter | c-BN | 4H-SiC | GaN | Diamond |
| Bandgap (eV) | 6.4 | 3.2 | 3.4 | 5.5 |
| Breakdown Field (MV/cm) | 7–10 | 2.8 | 3.3 | 10–20 |
| Baliga’s FOM (×10⁵)* | 3.4 | 1.2 | 1.8 | 32 |
Implications:
- c-BN enables >10 kV power devices with lower conduction losses than SiC/GaN.
- Lower leakage currents at high temperatures due to a wider bandgap.
3. Thermal Management Advantages
| Property | c-BN | SiC | GaN | Diamond |
| Thermal Conductivity (W/m·K) | 13–30 (anisotropic) | 490 | 253 | 2000 |
| CTE (×10⁻⁶/K) | 3.5–4.5 | 4.5 | 5.6 | 1.0 |
- c-BN’s moderate thermal conductivity + excellent CTE match to SiC/GaN prevents delamination in heterostructures.
- Outperforms GaN in high-power RF devices (e.g., 5G base stations) where heat spreading is critical.
4. Radiation Hardness & Reliability
- Neutron Radiation Resistance: 100× better than SiC (critical for aerospace/nuclear apps).
- No Current Collapse: Unlike GaN, c-BN shows no dynamic Rₒₙ degradation at high dv/dt.
- Low Defect Sensitivity: Maintains performance even with 10⁶ dislocations/cm² (vs. GaN’s 10⁸ limit).
While diamond leads in thermal conductivity and SiC/GaN dominate today’s WGB market, c-BN is uniquely positioned for:
✔ Ultra-high voltage/power (>10 kV)
✔ Extreme environments (nuclear, aerospace, metallurgy)
✔ Next-gen quantum devices
Explore our optimized boron nitride products.
Challenges and Future Prospects
Despite its promise, c-BN faces significant challenges in synthesis and integration into semiconductor devices. The material is typically produced using high-pressure, high-temperature (HPHT) processes, requiring pressures of ~5–6 GPa and temperatures of ~1500–2000°C. These conditions make large-scale production costly and complex, limiting c-BN’s commercial adoption compared to SiC and GaN, which benefit from more mature fabrication techniques. Additionally, achieving effective p-type and n-type doping remains challenging due to c-BN’s strong covalent bonds, though advances in ion implantation and molecular beam epitaxy are improving doping efficiency.
Ongoing research aims to address these hurdles by developing alternative synthesis methods, such as plasma-enhanced chemical vapor deposition (PECVD), which could reduce costs and enable larger c-BN films. Improved doping techniques and defect control are also critical to enhancing device performance. Looking ahead, c-BN has the potential to dominate high-power electronics in applications requiring extreme conditions, such as aerospace, deep-sea exploration, and ultra-high-voltage grids, provided synthesis challenges are overcome.
| Challenge | Description | Potential Solutions |
| Synthesis Cost | HPHT processes are energy-intensive and expensive | PECVD, low-pressure methods |
| Doping Difficulty | Strong covalent bonds hinder effective doping | Ion implantation, advanced epitaxy |
| Scalability | Limited to small crystals or thin films | Larger-area deposition techniques |
At Advanced Ceramics Hub, we supply optimized-grade ceramic products that comply with ASTM and ISO standards, ensuring outstanding quality and reliability.
Cubic boron nitride stands out as an ideal material for high-power semiconductor devices due to its ultra-wide bandgap, exceptional thermal conductivity, high hardness, and chemical stability. These properties enable c-BN to handle extreme voltages, temperatures, and environments, outperforming traditional silicon and competing wide-bandgap materials like SiC and GaN in critical applications. From electric vehicle inverters to renewable energy converters and grid infrastructure, c-BN-based devices promise higher efficiency, reliability, and compact designs, paving the way for advancements in power electronics.
While challenges in synthesis and doping currently limit its widespread adoption, ongoing research and technological breakthroughs are poised to unlock c-BN’s full potential. As industries demand more robust and efficient power solutions, c-BN is set to play a pivotal role in shaping the future of high-power electronics, driving innovation in sustainable energy and advanced transportation.
