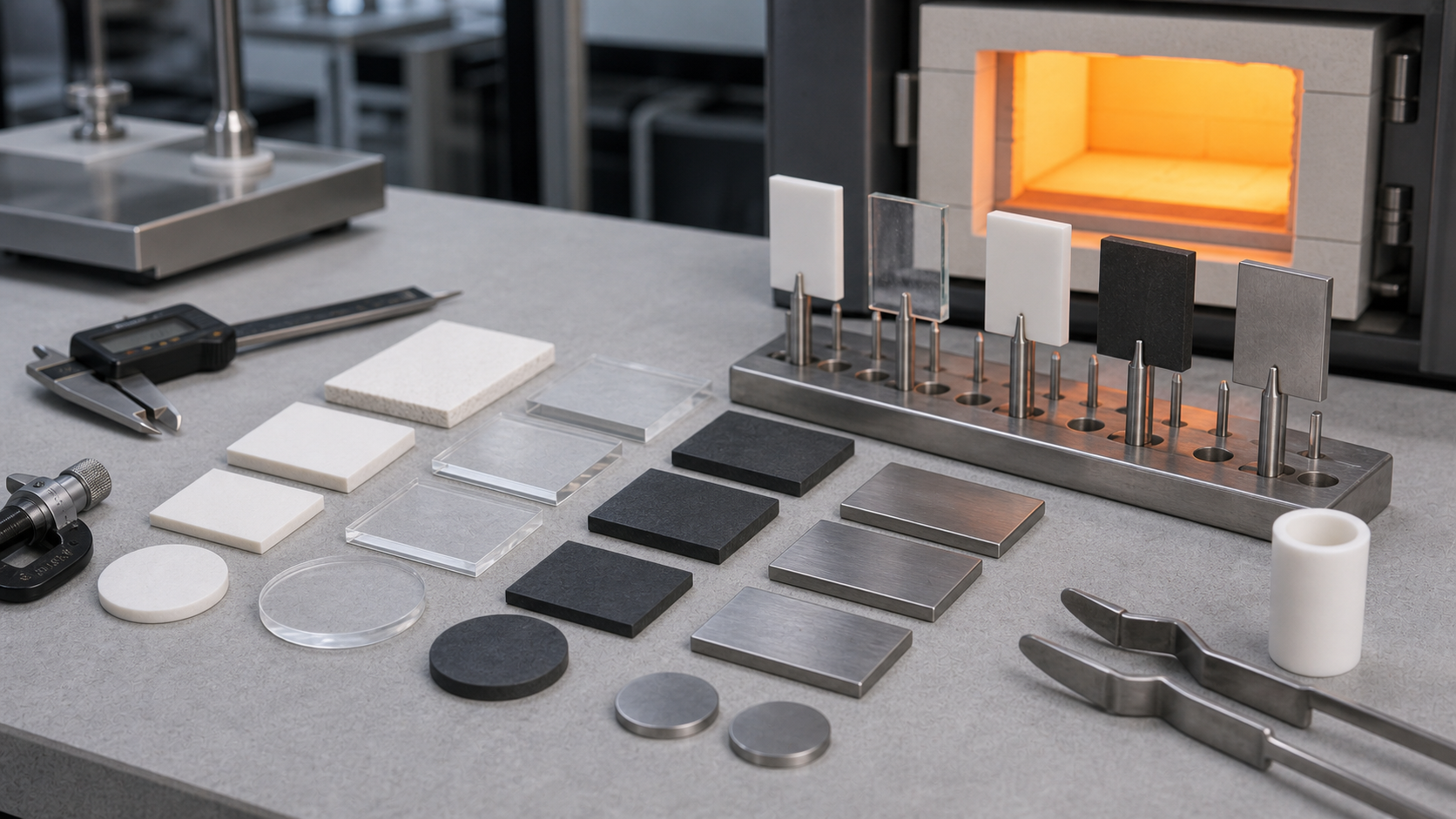

Thermal Expansion in Materials: Is Low or High CTE Better?

Thermal expansion is a fundamental property of materials that describes how they change in size when subjected to temperature variations. At its core, when materials are heated, their atoms or molecules vibrate more intensely, leading to an increase in the average distance between them, which manifests as expansion. Conversely, cooling causes contraction. The Coefficient of Thermal Expansion (CTE) is a key metric that quantifies this behavior, typically expressed in units like parts per million per degree Celsius (ppm/°C) or micrometers per meter per degree Celsius (μm/m·°C). Understanding CTE is crucial in fields ranging from engineering to everyday manufacturing because mismatched expansion rates can lead to structural failures, such as cracks in buildings or malfunctions in electronic devices.

What is Zero Thermal Expansion?

In school, we learn that materials expand or contract with temperature changes. However, only a few special materials exhibit little to no change in volume with temperature, and this typically occurs within a relatively narrow temperature range. This characteristic is known as zero thermal expansion. Such materials are in high demand in precision engineering for sensitive systems and components of nanoscale devices. For example, gyroscopes used in spacecraft must maintain their functionality without being affected by the working temperature.

Materials with a zero thermal expansion coefficient can maintain dimensional stability across various temperatures, which is crucial for high-precision instruments, aerospace components, and medical implants. Without a zero thermal expansion coefficient, temperature fluctuations could lead to unnecessary expansion or contraction, resulting in malfunctions, structural damage, or inaccurate measurements.

Its Importance is as follows:

• High-Precision Engineering – For precision instruments like gyroscopes in spacecraft, maintaining consistent dimensions is critical for accurate operation, regardless of temperature fluctuations.
• Aerospace Applications – Zero thermal expansion materials ensure the structural integrity of aircraft and spacecraft components, preventing deformation or stress caused by extreme temperature changes during flight.
• Medical Implants – These materials are also suitable for implants that need to maintain their shape and size inside the body, unaffected by temperature changes from body heat or external factors.
• Precision Instruments – Devices such as optical instruments, telescopes, and scanning probe microscopes require materials that do not expand or contract with temperature changes to maintain alignment and resolution.
• Electronic Devices – In the field of microelectronics, components are miniaturized, and even slight dimensional changes due to thermal expansion can lead to failures or performance degradation.

Essentially, materials with near-zero or zero thermal expansion are crucial for applications where dimensional stability is vital, ensuring reliable performance across a wide temperature range. In materials science, a coefficient of thermal expansion (CTE) below 2×10⁻⁶°C⁻¹ is typically considered “low expansion,” while materials with near-zero expansion must be tested within a specific temperature range.

Currently, no material has a strictly zero thermal expansion coefficient, but there are materials with coefficients close to zero: metal alloys such as Fe-Ni alloys exhibit extremely low CTE within a specific temperature range (e.g., from room temperature to 200°C), performing similarly to semiconductor materials. Ceramic materials like certain glass-ceramics, which are low-expansion glass ceramics, have a CTE close to zero but are non-metallic.

What is the Coefficient of Thermal Expansion (CTE)?

The Coefficient of Thermal Expansion (CTE) is a quantitative measure of how much a material’s size changes with a temperature change. It is the property that allows engineers to precisely calculate expansion, not just observe it.

The thermal properties of solids are a crucial aspect of factory and product design. Failure to account for thermal expansion during construction and design can lead to significant structural damage to machines or buildings. To prevent such issues, countless measures have been implemented, and many ingenious technologies have been developed based on this phenomenon. The amount of expansion a material undergoes can be explained by a coefficient that corresponds to the volume fraction of the material that changes per degree of temperature variation. This coefficient, known as the coefficient of thermal expansion (CTE), is used to predict how much a material will expand given a known temperature change. For a material, the larger this coefficient, the greater its expansion for each degree increase in temperature.

When an object is heated, it absorbs and stores energy in the form of kinetic energy within its atoms. As the temperature increases, the inherent vibrations of the atoms become stronger and more pronounced. This enhanced vibration counteracts the intermolecular forces, causing the distance between atoms or molecules to increase, thereby expanding the object’s volume. The extent to which a substance expands due to temperature changes is mathematically represented by the coefficient of thermal expansion. This coefficient varies by material and is based on its other physical properties. The higher the CTE of a material, the greater its expansion when heated.

How is CTE Defined and Measured?

There are two primary types of CTE, depending on the dimension being measured:

a) Linear Coefficient of Thermal Expansion (α)
This is the most common type. It measures the change in length per unit length per degree change in temperature.

✅Formula: α = (ΔL / L₀) / ΔT

• α (alpha) = Linear CTE ( units usually /°C or /K)
• ΔL (delta L) = Change in length (e.g., in meters, mm)
• L₀ = Original length (in the same units as ΔL)
• ΔT (delta T) = Change in temperature (°C or K)

✅What it means: A material with a CTE of 12 × 10⁻⁶/°C will expand 12 millionths of its length for every degree Celsius it is heated.

b) Volumetric Coefficient of Thermal Expansion (β)
This measures the change in volume per unit volume per degree change in temperature. For isotropic materials (those that expand equally in all directions), it is approximately three times the linear coefficient: β ≈ 3α.

Why is CTE so Important? (Applications and Consequences)

Understanding and managing CTE is critical in almost every field of engineering and design.

Scenario	Consequence of Ignoring CTE	Engineering Solution
Railroad Tracks	Tracks buckle on a hot day, causing derailment.	Gaps (expansion joints) are left between rail segments.
Bridges	Expansion and contraction can damage supports and the road surface.	Expansion joints and sliding bearing pads are used.
Thermostats	Cannot automatically control temperature.	A bimetallic strip, made of two metals with different CTEs bonded together, bends when heated, breaking or making an electrical circuit.
Engine Parts	Pistons can seize inside cylinders when the engine heats up.	Materials are carefully chosen and designed with precise tolerances to account for different expansion rates.
Electronics	Solder joints crack, microchips delaminate, and connections fail due to repeated heating/cooling cycles.	Components with matched CTEs are used (e.g., silicon chips mounted on alumina substrates with similar CTEs).
Cooking	A glass jar lid is stuck.	Running the lid under hot water causes the metal lid (higher CTE) to expand more than the glass jar (lower CTE), loosening it.

Key Factors Influencing CTE

• Bond Strength: Materials with strong atomic bonds (e.g., diamond, tungsten) tend to have low CTEs. Weaker bonds allow more movement and thus higher expansion.
• Material Class: Generally, polymers > metals > ceramics. This is why plastic parts often feel “looser” when hot.
• Crystal Structure: Some materials are anisotropic, meaning their CTE is different along different crystal axes (e.g., graphite).
• Temperature: The CTE itself can change with temperature for some materials.

Here are some examples of materials categorized by their CTE:

• Low CTE (<5 ppm/°C): Invar (iron-nickel alloy, ~1.2 ppm/°C), Zerodur (glass-ceramic, ~0.05 ppm/°C), silicon (~2.6 ppm/°C).
• Medium CTE (5-15 ppm/°C): Steel (~12 ppm/°C), glass (~9 ppm/°C), titanium (~8.6 ppm/°C).
• High CTE (>15 ppm/°C): Aluminum (~23 ppm/°C), copper (~17 ppm/°C), polymers like PVC (~50-100 ppm/°C).

Material	CTE (ppm/°C)	Category	Typical Use
Invar	1.2	Low	Precision instruments
Silicon	2.6	Low	Semiconductors
Steel	12	Medium	Structural components
Aluminum	23	High	Automotive parts
PVC	50-100	High	Pipes and fittings

These variations underscore how CTE is not just a number but a critical parameter in predicting material behavior under thermal loads.

Low CTE: Advantages and Applications

A Low Coefficient of Thermal Expansion (Low CTE) means a material’s dimensions change very little with fluctuations in temperature. This property, often called dimensional stability, is a critical engineering parameter in many high-performance applications.

Key Advantages of Low CTE Materials

1. Dimensional Stability:
This is the primary advantage. Parts made from low-CTE materials maintain their size, shape, and alignment under varying thermal conditions. This is non-negotiable in precision systems where even micron-level changes can cause failure.

2. Reduced Thermal Stress:
When two materials with mismatched CTEs are joined and heated, they want to expand by different amounts. This difference creates internal thermal stress, which can lead to:

• Cracking or delamination
• Warping or buckling
• Failure of bonded joints or seals: Using a low-CTE material minimizes this mismatch, especially when paired with another low-CTE material.

3. Improved Thermal Shock Resistance:
Thermal shock occurs when a rapid temperature change creates a steep temperature gradient across a material, causing uneven expansion and high stress. Low-CTE materials are inherently better at resisting this shock because the overall volumetric change is minimized. A classic example is the glass-ceramic cooktop, which can go from room temperature to 500°C without cracking.

4. High Precision and Accuracy:
In instruments where measurement is based on physical dimensions or the alignment of components, thermal expansion introduces error. Low-CTE materials ensure that the instrument’s calibration and accuracy are maintained over its operating temperature range.

Applications of Low CTE Materials

The following table summarizes the critical applications across various industries:

Industry/Field	Application	Why Low CTE is Critical	Example Materials
Aerospace & Astronomy	Space Telescope Mirrors & Structures	To maintain perfect shape and alignment under the extreme temperature swings of space (-150°C to +120°C). Any distortion would blur images.	Carbon Fiber Composites, Cervit (glass-ceramic), Invar, Silicon Carbide (SiC)
	Satellite Structures & Antennas	To ensure communication antennas remain pointed accurately at Earth and that sensors maintain calibration.	Carbon Fiber Composites, Invar, Graphite Composites
Precision Engineering & Optics	Metrology Equipment	The frames of laser interferometers, coordinate measuring machines (CMMs), and gauge blocks must not expand to ensure measurement integrity.	Granite, Invar, Zerodur
	Lithography Steppers (Semiconductor Manufacturing)	Masks and silicon wafers must be aligned with nanometer precision. Heat from the laser light must not cause misalignment.	Ultra-Low Expansion (ULE) Glass, Cordierite Ceramics

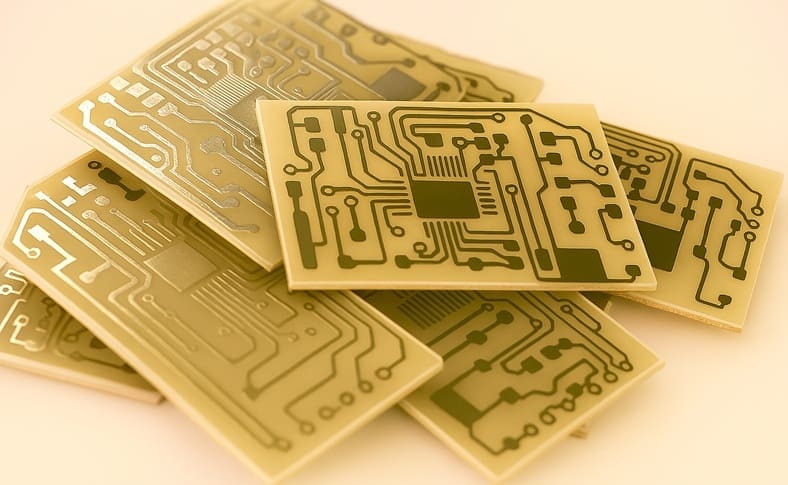

Electronics	Semiconductor Substrates	The substrate must have a CTE that matches the silicon chip to prevent stress, cracking, or delamination during manufacturing and operation.	Alumina Ceramics, Kovar, Silicon
Energy & Manufacturing	High-Temperature Engines & Turbines	To maintain tight tolerances between rotating parts (like blades and seals) at operating temperatures, ensuring efficiency and preventing failure.	Certain Superalloys, Silicon Nitride Ceramics
Consumer Goods	Cooktops & Stove Windows	To withstand direct, high heat from a flame or heating element without shattering.	Glass-Ceramics (e.g., Corning’s Pyroceram, Schott’s Ceran)
	Precision Pendulum Clocks	The length of the pendulum determines the timekeeping. A low-CTE pendulum rod keeps accurate time despite room temperature changes.	Invar (historically used)

Common Low CTE Materials

• Invar (Fe-Ni36% alloy): The classic low-CTE metal. Its CTE is exceptionally low around room temperature. Used in precision instruments, watches, and LNG tanks.
• Glass-Ceramics (e.g., Zerodur, Cervit): Have CTEs near zero. Their microstructure is engineered for incredible dimensional stability. Used in telescopes and optics.
• Carbon Fiber Composites: CTE can be tailored to be zero or even negative by adjusting the fiber orientation and layup. Revolutionized aerospace and satellite design.
• Ceramics (e.g., Silicon Carbide (SiC), Alumina): Generally have lower CTEs than metals. SiC is excellent for mirrors and high-stiffness structures.
• Super Alloys & Kovar: Engineered metal alloys designed to match the CTE of glass or ceramics for sealing applications in electronics.
• Granite: Used as a stable base for metrology equipment precisely because it expands so little.

However, challenges exist: low CTE materials often come at a higher cost due to specialized alloys or processing. They may also have limitations in mechanical properties, such as brittleness in ceramics. Despite these, advancements like carbon fiber composites with tailored low CTE are expanding their use in automotive and electronics, balancing cost with performance.

High CTE: Advantages and Applications

A High Coefficient of Thermal Expansion means a material expands and contracts significantly with temperature changes. This property is often leveraged for mechanical action, sealing, and compliance.

Key Advantages of High CTE Materials

1. Useful Mechanical Work:
The large, predictable expansion and contraction can be harnessed to perform tasks like opening valves, closing circuits, or actuating mechanisms. This is the principle behind thermal actuators.

2. Ease of Assembly and Sealing (Thermal Fit):
A high-CTE material can be heated to expand, fitted over another part, and then cooled to shrink into a very tight, secure grip. This is known as a shrink fit. Conversely, a part can be cooled to contract for assembly and then allowed to expand to seal.

3. Energy Absorption and Stress Relief:
In controlled scenarios, the ability to expand freely can prevent a buildup of internal stress by allowing the material to “yield” to thermal forces, rather than resisting them rigidly.

4. Simplicity and Reliability:
Components that use thermal expansion for actuation (like bimetallic strips) often have no moving parts in the traditional sense, making them simple, cheap, and highly reliable.

Applications of High CTE Materials

High CTE is not a drawback in these contexts; it is the defining feature that makes the application possible.

Application	How High CTE is Used	Example Materials
Thermal Actuators & Switches	Bimetallic Strips: Two metals with different CTEs are bonded together. When heated, the high-CTE metal expands more, causing the strip to bend. This bending motion can open or close an electrical circuit (e.g., in thermostats, circuit breakers, coffee makers).	Brass (high CTE) bonded to Invar (low CTE).
Thermal Fuses & Overheat Protection	A spring is held in place by a solder pellet. If the temperature rises too high, the solder (high CTE, low melting point) melts or softens, releasing the spring and breaking the circuit to prevent fire.	Solder alloys, Polymers.
Shrink Fits & Seals	A metal ring or part is heated until it expands and can be easily slipped onto a shaft. As it cools, it shrinks, creating an extremely tight and secure grip. Used for mounting gears, propellers, and train wheels onto axles.	Medium Carbon Steels, Stainless Steel.
Compensation and Stress Management	Expansion Joints: In pipelines, bridges, and railway tracks, deliberate gaps are filled with flexible materials (like rubber) that have high CTE. They compress when installed and expand to fill the gap as the structure heats up, preventing buckling.	Elastomers (e.g., rubber), PTFE (Teflon).
Thermal Spray Coatings	Coatings are designed to have a CTE that is slightly higher than the substrate. Upon cooling, the coating contracts slightly more, putting it in a state of compressive stress. This makes the coating more resistant to cracking and spalling.	Various metallic alloys, ceramics.
Shape-Memory Alloys (SMAs)	While complex, the effect is driven by a large, reversible change in microstructure with temperature, which manifests as a very high effective CTE. Used for actuators in robotics, aerospace, and biomedical devices (e.g., stents).	Nitinol (Nickel-Titanium alloy).
Glass-to-Metal Seals	In electronics, a metal shell must be sealed to an insulating glass pass-through. A successful seal requires matching the CTE of the glass and metal precisely. For certain glasses, a high-CTE metal alloy is specifically engineered to match.	Kovar (engineered to match borosilicate glass).

Common High CTE Materials

• Polymers & Elastomers: Most plastics and rubbers have very high CTEs (e.g., Polypropylene: 100-150 × 10⁻⁶/°C). This is often a design challenge, but it is exploited in seals and gaskets.
• Zinc and its Alloys: Has one of the highest CTEs among common metals.
• Aluminum and its Alloys: Higher CTE than steel, making it useful in bimetallic strips.
• Brass and Bronze: Higher CTE than steel, also used in bimetallic strips.
• Lead and Tin-Based Solder: High CTE and low melting point are key to their function in thermal fuses and electronics assembly.
• Some Stainless Steels (e.g., Austenitic grades like 304 SS).

Challenges involve potential deformation leading to inaccuracies or failures in precision setups. In multi-material systems, high CTE mismatches can cause warping, as seen in some electronic circuits where copper traces expand more than the substrate. Mitigation strategies include using compliant layers or designing with tolerances.

Conclusion

In summary, thermal expansion and CTE are pivotal in material science, influencing everything from microscopic electronics to massive infrastructure. Low CTE excels in stability-driven applications, while high CTE shines in flexible, cost-sensitive ones. Neither is inherently better; the optimal choice hinges on balancing application demands, environmental conditions, and budget.

The key takeaway is that informed material selection, guided by CTE, enhances durability and efficiency. As materials engineering evolves, innovations like nanomaterials with tunable CTE promise to blur these lines, enabling customized solutions for complex challenges.

Looking ahead, research into smart materials that adapt their expansion properties could revolutionize industries, reducing failures and improving sustainability.
