Optimizing Silicon Nitride Substrates: Advanced Tape Casting Techniques for Superior Performance

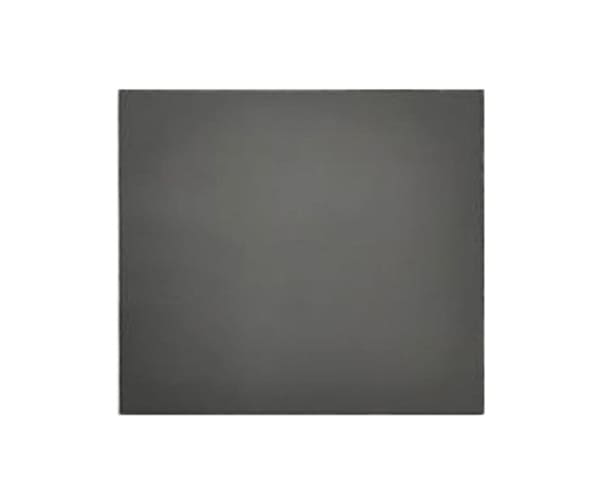

Silicon nitride substrates are renowned for their exceptional properties, including high thermal conductivity, excellent mechanical strength, low thermal expansion coefficient, and superior electrical insulation. These characteristics make them indispensable in various high-tech applications, such as power electronics, automotive components, aerospace engineering, and renewable energy systems. For instance, in electric vehicles (EVs), Si3N4 substrates enable efficient heat dissipation in power modules, enhancing overall system reliability and performance. Similarly, in 5G telecommunications, they support high-frequency circuits by minimizing signal loss and thermal buildup.

Tape casting, also known as doctor blade casting, is a pivotal manufacturing technique for producing thin, uniform ceramic sheets. This method involves spreading a slurry of ceramic powders mixed with binders and solvents onto a carrier film, followed by drying and sintering. Traditionally, tape casting has been favored for its scalability and cost-effectiveness in mass production. However, conventional approaches often face limitations like inconsistent thickness, high defect rates due to drying cracks, and suboptimal material properties stemming from impurities or uneven particle distribution.

This article delves into innovative strategies to overcome these hurdles, aiming to elevate Si3N4 substrates to “superior” quality levels. By exploring advanced tape casting variants and optimizations, we highlight how these new techniques can achieve denser microstructures, higher thermal conductivities (up to 100 W/m·K or more), and improved yield rates. The discussion is structured to provide a comprehensive roadmap for researchers and engineers seeking to push the boundaries of ceramic substrate performance.

At Advanced Ceramics Hub, we specialize in high-quality aluminum nitride substrate products with various specifications, ensuring optimal performance for industrial and scientific applications.

Review of Traditional Tape Casting Methods

The foundational process of traditional tape casting begins with slurry preparation, where high-purity Si3N4 powders are dispersed in organic solvents like toluene or xylene, along with dispersants, binders (e.g., polyvinyl butyral), and plasticizers. The slurry is then cast onto a moving carrier tape using a doctor blade to control thickness, typically ranging from 50 to 500 micrometers. Subsequent drying evaporates the solvent, leaving a flexible green tape that can be cut, stacked, and sintered at high temperatures (around 1800°C) under a nitrogen atmosphere to densify the material.

Key advantages of this method include its ability to produce large-area, thin sheets with uniform thickness, enabling continuous roll-to-roll processing ideal for industrial scales. For example, it facilitates the fabrication of multilayer substrates for integrated circuits, where precise layer alignment is crucial. Moreover, the process is relatively low-cost compared to alternatives like hot pressing, making it accessible for widespread adoption.

However, challenges persist. Organic solvents contribute to high oxygen content in the final product, which degrades thermal conductivity by forming secondary phases like silicon oxynitride. Drying stages often induce cracks or warping due to uneven solvent evaporation, leading to yield losses of up to 20-30%. Additionally, achieving high solid loading (above 50 vol%) in the slurry is difficult without agglomeration, resulting in porous microstructures post-sintering.

3 Key Points in the Tape Casting of Flake-Shaped Silicon Nitride Substrates

The successful tape casting of flake-shaped silicon nitride (Si₃N₄) substrates for high-thermal-conductivity applications hinges on the meticulous optimization of three interdependent elements: the powder characteristics, the tape casting system (rheology & chemistry), and the additive package. Failure to control any one of these will compromise the final product’s integrity and performance.

1. Powder: The Foundational Element

The starting powder is not merely an ingredient; it defines the ultimate potential of the substrate. For flake-shaped Si₃N₄, this goes beyond basic chemistry.

• Particle Morphology and Size Distribution: This is paramount. The powder must consist of highly anisotropic, plate-like (or flake) particles. The goal is to have a high aspect ratio (diameter-to-thickness ratio). These flat particles are the fundamental units that, when aligned, create the fast path for phonon transport, leading to high in-plane thermal conductivity. A narrow, controlled size distribution is crucial to ensure uniform packing and avoid defects during casting and drying.
• Purity and Surface Chemistry: The powder must be of exceptionally high purity. Even trace amounts of certain metallic impurities (e.g., Fe, Ca, Al) or oxygen-rich surface layers can act as sinks for carbon during burnout or form low-melting-point glassy phases during sintering. These phases become the primary scattering sites for phonons, drastically reducing the thermal conductivity. The surface chemistry also dictates how well dispersants adsorb onto the particle surface, directly impacting slurry stability.
• Sintering Aid Compatibility: Silicon nitride is notoriously difficult to sinter without additives. The choice and amount of sintering aids (e.g., Y₂O₃, MgO) are critical. They must be uniformly distributed within the powder to facilitate liquid-phase sintering and promote the growth of elongated β-Si₃N₃ grains while subsequently crystallizing into a secondary grain-boundary phase that doesn’t severely impede thermal flow.

2. The Tape Casting System: Rheology and Solvent Chemistry

This refers to the liquid medium and the resulting flow properties (rheology) of the slurry. It is the engine of the casting process.

Solvent Selection: Aqueous vs. Organic: The choice between an aqueous (water-based) or organic (e.g., toluene/ethanol, MEK/ethanol) system is a fundamental decision.

• Organic solvents traditionally offer superior wetting of hydrophobic Si₃N₄ powders, lower surface tension (reducing drying defects like pinholes), and easier dissolution of certain binders. However, they pose significant health, safety, and environmental (HSE) hazards.
• Aqueous systems are more environmentally friendly and safer but present challenges: higher surface tension can lead to foaming and poor wetting, and water’s high evaporation enthalpy requires precise drying control. The pH of the aqueous system must also be carefully adjusted to control electrostatic dispersion.

Rheological Engineering: The slurry’s flow behavior is non-negotiable. It must exhibit distinct pseudoplastic or shear-thinning characteristics.

• Under high shear (as it passes under the doctor blade), the viscosity must drop dramatically to allow for smooth flow and excellent leveling, enabling the shear-induced alignment of the flake particles.
• Immediately after casting (at near-zero shear), the viscosity must instantly recover to a high value. This “snap-back” prevents the settled flakes from re-orienting randomly or settling further, effectively locking them in their aligned, planar configuration. This is the single most critical rheological function for achieving high anisotropy.

3. The Additive Package: Dispersants, Binders, and Plasticizers

These organic additives are the “magic” that transforms a powder suspension into a handleable, flexible green tape. Their selection and balance are a delicate art.

• Dispersant: The workhorse of stability. Its role is to deagglomerate the powder and sterically and/or electrostatically stabilize the particles against re-flocculation. The dispersant molecule must have a backbone that is compatible with the solvent and an anchor group that strongly adsorbs onto the Si₃N₄ surface. An optimal dispersant dosage provides maximum powder loading at the minimum possible viscosity, which is essential for achieving high-density green tapes and, ultimately, high-density sintered substrates.
• Binder: This polymer (e.g., PVB, acrylics) provides the green strength and cohesion of the cast tape. It forms a polymer matrix that holds the ceramic particles in place after the solvent evaporates. The binder must be fully compatible with the solvent and other additives. Crucially, it must burn out cleanly and completely during the thermal debinding stage, leaving minimal carbon residue. Any residual carbon will react with Si₃N₄ during sintering to form silicon carbide (SiC), sabotaging the microstructure and thermal properties.
• Plasticizer: This low-molecular-weight additive acts as a lubricant between the polymer chains of the binder. It reduces the glass transition temperature (Tg) of the binder, making the dried green tape flexible and tough rather than brittle. This prevents cracking during handling, winding, and subsequent punching or cutting operations. The choice of plasticizer is specific to the binder chemistry.

Innovations in Emerging Tape Casting Technologies

Tape casting, a critical process for producing thin-layer ceramic, metal, or polymer materials, is undergoing a profound transformation driven by demands for advanced materials and high-end applications. While traditional solvent-based or aqueous tape casting methods are well-established, they face limitations in precision, efficiency, and sustainability. In recent years, a series of innovative technologies has emerged to overcome these constraints, propelling the field toward greater precision, environmental friendliness, and multifunctionality.

1. Tape Lamination and Warm Bonding

This is a multilayer technology focused on reliably bonding multiple layers of green tape into a three-dimensional structure, going beyond single-layer tape casting.

✅Core Principle: First, flexible single-layer green tapes are prepared via conventional tape casting. These tapes are then cut, stacked, and placed into a preheated die. Pressing is performed under a temperature below the binder’s glass transition temperature (Tg) and applied pressure. At this stage, the polymer binders and plasticizers on adjacent layer surfaces soften, interdiffuse, and entangle, forming strong chemical bonds at the interface. This fuses the multiple layers into a monolithic, high-strength green body.

✅Key Characteristics:

• High Interlayer Strength: Solves common delamination issues associated with cold lamination.
• High Reliability: Widely used in manufacturing multilayer ceramic capacitors (MLCCs), porous/dense/porous trilayer structures for solid oxide fuel cells (SOFCs), and other devices requiring complex internal channels or cavities.

✅Advantages: Enables the production of high-density, complex-shaped laminates with significantly superior interlayer bonding quality compared to room-temperature lamination.

✅Challenges: Requires precise control of temperature, pressure, and time to prevent layer slippage or excessive extrusion of organic components.

2. Tape Casting with Isostatic Pressing

This is a post-processing technique designed to enhance the density and uniformity of single or multilayer tape-cast green bodies.

✅Core Principle: After obtaining green tapes via tape casting and completing lamination, the green body is sealed within a flexible, airtight elastic mold (typically a rubber or plastic sleeve). This assembly is then placed in the high-pressure vessel of an isostatic press. The vessel is filled with a fluid (oil or water) and subjected to extremely high isotropic pressure (typically 100-300 MPa). The pressure acts uniformly on all surfaces of the green body through the mold, compressing internal pores and rearranging particles into the tightest packing state. This significantly improves green density and uniformity.

✅Key Characteristics:

• Isotropic Uniform Densification: Pressure is applied evenly from all directions, eliminating density gradients commonly found in uniaxial pressing and preventing green body deformation and internal stresses.
• Exceptionally High Green Density: Enables the production of green bodies with density far exceeding those achieved by traditional tape casting, substantially reducing shrinkage and deformation during subsequent sintering.

✅Advantages: Produces green bodies with highly uniform structure and minimal defects, making it a critical process for manufacturing high-performance, high-reliability structural ceramics (e.g., alumina, silicon nitride).

✅Challenges: Requires significant equipment investment and involves relatively long process cycles.

3. Gel Tape Casting Process

This is an in-situ slurry solidification technology that replaces traditional solvent evaporation drying with a gelation reaction, representing a major innovation in aqueous-based tape casting.

✅Core Principle: The slurry uses water as the solvent with two key additives: a monomer (e.g., acrylamide) and a cross-linker (e.g., methylene bisacrylamide). After casting, an initiator (e.g., ammonium persulfate) and a catalyst (e.g., TEMED) are introduced to the slurry, triggering free-radical polymerization of the monomer. This forms a three-dimensional hydrogel network that immobilizes ceramic particles in place, achieving in situ solidification. Water is subsequently removed through drying.

✅Key Characteristics:

• Environmental Safety: Primarily water-based, eliminating the toxicity and costs associated with organic solvents.
• High Green Strength: The polymerized organic network provides exceptional mechanical strength to the green body, enabling machinability.
• Low-Stress Drying: As water is trapped within the gel network, drying stresses are minimized, allowing the production of very thick (>5 mm) bodies without cracking.

✅Advantages: An eco-friendly process capable of producing high-strength, thick, and complex-shaped ceramic green bodies, making it highly suitable for manufacturing large and structurally intricate ceramic components.

✅Challenges: Requires precise control over the monomer polymerization process, and the binder burnout stage must be carefully managed to avoid defects.

4. UV-Induced Polymerization Tape Casting / Photopolymerization-Based Tape Casting

This is a solvent-free, high-speed solidification technology and a key foundational process in the field of additive manufacturing (3D printing).

✅Core Principle: The slurry consists of ceramic powder, photosensitive resin (containing photopolymerizable monomers/oligomers), and a photoinitiator. After the slurry is formed into a thin layer via doctor blading, it is immediately exposed to specific wavelength radiation (typically ultraviolet/UV light). The photoinitiator absorbs light energy to generate free radicals, rapidly initiating monomer polymerization and cross-linking. This transforms the entire slurry layer from liquid to solid within seconds to tens of seconds.

✅Key Characteristics:

• Near-Instantaneous Curing: Extremely fast production speed, eliminating the need for lengthy drying tunnels.
• Solvent-Free and Drying-Defect-Free: Fundamentally avoids issues such as cracking and skinning caused by uneven solvent evaporation.
• Exceptional Dimensional Accuracy: Minimal volumetric shrinkage during curing, perfectly retaining the shape formed by the doctor blade.
• Seamless Compatibility with 3D Printing: This process is core to tape-based additive manufacturing, enabling layer-by-layer fabrication of complex three-dimensional structures.

✅Advantages: Ultra-high efficiency, high precision, suitability for micropatterning and complex 3D structure fabrication. It represents the future mainstream production direction for precision electronic ceramic devices (e.g., MLCCs, LTCCs) and bioceramics.

✅Challenges: The slurry must exhibit high UV penetration to ensure sufficient curing depth; light scattering and absorption by ceramic powders must be considered; and the burnout of photosensitive resins requires specialized design.

Future Trends of Tape Casting Technology for Silicon Nitride Substrates

The evolution of silicon nitride (Si₃N₄) tape casting technology will focus on overcoming current limitations and unlocking new functionalities to meet escalating demands in advanced industries. Key future directions include:

1. Ultra-High Thermal Conductivity Substrates

• Development Goal: Achieve >200 W/m·K in-plane thermal conductivity via optimized flake-shaped Si₃N₄ powder alignment, reduced oxygen impurities, and grain boundary engineering during sintering.
• Approach: Integrate electrophoretic deposition (EPD) principles into tape casting to enhance particle orientation under electric fields.

2. Multi-Material Hybrid Tape Casting

• Development Goal: Fabricate functionally graded layers (e.g., dense/porous Si₃N₄ structures) or embedded conductive patterns (e.g., co-cast metal-ceramic interconnects) in a single process.
• Approach: Advanced multi-slurry feeding systems with micro-dispensing nozzles for precise lateral/vertical material distribution.

3. Solvent-Free and Sustainable Processing

• Development Goal: Eliminate organic solvents using UV-curable aqueous slurries or hot-melt binders to reduce environmental impact and drying defects.
• Approach: Develop novel photoinitiators and resins compatible with Si₃N₄’s UV-scattering properties.

4. AI-Driven Process Optimization

• Development Goal: Real-time monitoring and adaptive control of slurry rheology, tape thickness, and drying kinetics via machine learning algorithms.
• Approach: Deploy in-line sensors (e.g., laser rheometers, IR cameras) coupled with predictive models to auto-adjust doctor blade height/belt speed.

5. Additive Manufacturing Integration

• Development Goal: Enable complex 3D Si₃N₄ geometries via hybrid tape casting-3D printing, where tapes are layered, precision-cut, and bonded using digital designs.
• Approach: Combine tape casting with inkjet printing of sintering aids or structural supports for topology-optimized components.

6. Defect-Free Debinding and Sintering

• Development Goal: Minimize carbon residue and microcracks during binder burnout through catalytic debinding or two-stage controlled pyrolysis.
• Approach: Tailor binder chemistry to decompose cleanly below Si₃N₄’s oxidation threshold (<500°C).

7. Scalability for Large-Area Formats

• Development Goal: Produce meter-scale Si₃N₄ tapes with <1% thickness variation for power electronics and EV modules.
• Approach: Innovate wide-width casting heads with active vibration damping and nano-precision gap control.

The advancement of silicon nitride tape casting technology represents a convergence of materials science, process engineering, and digital innovation. By embracing emerging techniques such as solvent-free processing, AI-driven optimization, and hybrid additive manufacturing, the field is poised to overcome longstanding challenges in defect reduction, dimensional control, and functional integration. These developments will not only enhance the performance and reliability of Si₃N₄ substrates but also expand their applications in next-generation power electronics, electric vehicles, and telecommunications. The future of silicon nitride substrates lies in smarter, greener, and more precise production paradigms—ushering in an era of ceramics that are not just components, but enablers of technological progress.
