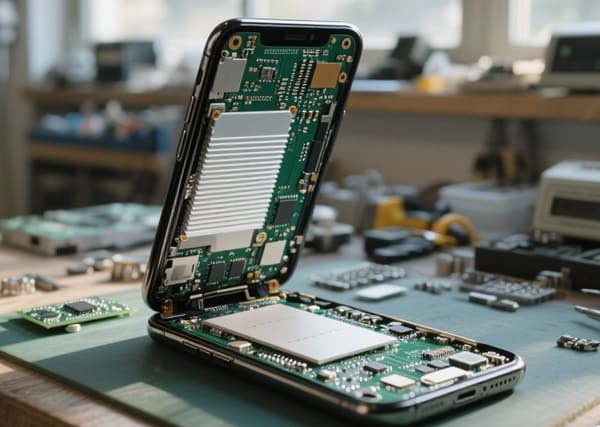

Spanish How Aluminum Nitride Improves Heat Dissipation in Electronics (Ceramic PCB Solutions)
In modern electronics, efficient heat dissipation has become a critical design challenge. As power densities increase in semiconductors, microprocessors, and LEDs, inadequate thermal management can lead to overheating, reduced performance, and premature failure. While traditional FR4 and metal-core PCBs have their place, aluminum nitride (AlN) has emerged as a top-tier solution due to its exceptional thermal and electrical properties. This article explores how AlN supports heat dissipation in electronic systems and why it’s gaining widespread adoption in ceramic PCB applications.
At Advanced Ceramic Hub, we specialize in high-quality alumina nitride products, ensuring optimal performance for industrial and scientific applications.
What Is Aluminum Nitride?
Aluminum nitride (AlN) is a ceramic material composed of aluminum and nitrogen. It belongs to a class of materials known as advanced ceramics and is prized for its outstanding combination of thermal and electrical characteristics. Compared to conventional substrates, AlN can transfer heat much more efficiently while simultaneously providing excellent insulation, crucial in high-frequency, high-voltage applications. Its chemical inertness and mechanical hardness further make it suitable for challenging environments such as aerospace and power electronics.
Key Properties of AlN:
| Property | Value | Significance |
| Thermal Conductivity | 170–200 W/m·K | Enables fast heat dissipation |
| Electrical Resistivity | >10¹² Ω·cm | Excellent electrical insulation |
| CTE (Coefficient of Thermal Expansion) | ~4.6 × 10⁻⁶ /K | Matches silicon to minimize stress |
| Hardness | ~11 Mohs | High mechanical durability |
AlN’s unique property set allows it to outperform conventional materials in thermally demanding environments. Its compatibility with modern semiconductor packaging processes makes it an integral part of cutting-edge device manufacturing.
Explore our high-quality alumina nitride products.
Why Is Thermal Conductivity So Important in Electronics?
Thermal conductivity measures a material’s ability to transfer heat. In electronic devices, poor heat dissipation can cause hotspots that lead to circuit failure, performance loss, or degradation of components over time. As chips become smaller and more powerful, the need to effectively spread and remove heat has become vital to both reliability and safety.
Impact of Poor Thermal Management:
| Problem | Result |
| Overheating | Shortened component lifespan |
| Temperature fluctuations | Signal instability |
| Hotspot formation | Physical damage or thermal runaway |
| Increased thermal resistance | Lower overall efficiency |
By using high thermal conductivity materials such as AlN, engineers can design systems that remain thermally stable under continuous operation, even in compact or sealed environments.
What Makes Aluminum Nitride Ideal for Heat Dissipation?
AlN offers several thermal advantages compared to other PCB substrates. Its thermal conductivity is second only to diamond among insulators, and its thermal expansion matches closely with silicon chips, reducing mechanical stress. This makes it especially valuable for direct-chip-attachment systems, where mismatched expansion rates can lead to cracking and delamination.
Thermal Benefits of AlN:
| Advantage | Description |
| Superior Thermal Conductivity | Over 5x that of alumina (Al₂O₃) |
| Uniform Heat Spreading | Reduces hotspots on the board |
| Excellent Thermal Shock Resistance | Withstands rapid temperature changes |
| Compatible with High Power Devices | Suitable for LEDs, RF, and power modules |
In short, AlN enables designs that are smaller, more powerful, and longer-lasting by maintaining safe thermal operating margins.
How Does Aluminum Nitride Compare with Other Ceramic Substrates?
While several ceramics are used in PCB substrates, AlN stands out for thermal conductivity. Common alternatives include alumina and silicon nitride, each with its strengths and weaknesses. Engineers must choose based on a balance between performance, cost, and application environment.
Ceramic Material Comparison:
| Material | Thermal Conductivity (W/m·K) | Dielectric Strength | Cost Level |
| Aluminum Nitride (AlN) | 170–200 | High | High |
| Alumina (Al₂O₃) | 20–30 | Moderate | Low |
| Silicon Nitride (Si₃N₄) | 70–90 | High | Medium |
Alumina is commonly used where cost is the primary factor, while silicon nitride provides a balance of toughness and conductivity. However, when thermal performance is non-negotiable, AlN is often the first choice.
Request a custom quote for the alumina nitride product.
How Does Aluminum Nitride Compare with Metal Core PCBs?
Metal core PCBs (MCPCBs), often made with aluminum or copper cores, are also used for thermal management. However, they require insulating layers that increase thermal resistance and may degrade under high stress. Unlike AlN, they lack intrinsic dielectric properties, necessitating additional layers that complicate design.
AlN vs. Metal Core PCB:
| Feature | AlN Ceramic PCB | Metal Core PCB |
| Thermal Conductivity | Higher (up to 200) | Moderate (100–120) |
| Electrical Insulation | Intrinsic | Requires dielectric |
| Thermal Stability | Excellent | Moderate |
| Weight | Lower | Higher |
When compactness, high power density, and long-term reliability are critical, AlN outperforms MCPCBs despite the cost premium.
How Is Aluminum Nitride PCB Manufactured?
AlN PCBs are manufactured using high-purity powders, sintering processes, and metalization techniques. The process requires precision and high-temperature control to maintain material integrity. It also demands careful handling during dicing, drilling, and circuit formation due to AlN’s ceramic brittleness.
AlN PCB Manufacturing Steps:
- Powder Processing: Fine AlN powders are prepared with binders.
- Forming: Tapes or sheets are cast and cut into substrate shapes.
- Sintering: Heated above 1700°C to achieve ceramic density.
- Metallization: Conductive patterns are printed using Mo/Mn or direct copper bonding.
- Finishing: Laser cutting, drilling, and coating applied.
Advanced fabrication techniques like DBC (Direct Bonded Copper) and AMB (Active Metal Brazing) are also used to create strong metal-ceramic interfaces, enhancing durability in high-power modules.
What Applications Use Aluminum Nitride PCBs for Thermal Management?
AlN is widely used in applications where heat buildup could impair function or longevity. These include industries like lighting, power electronics, RF, and automotive electronics. In each of these domains, the need for thermal stability is paramount.
Key Application Areas:
| Industry | Use Case |
| LED Lighting | Heat-spreading in high-power LEDs |
| Power Modules | Substrates for IGBT and MOSFET packaging |
| RF/Microwave | Stable operation under high frequency |
| Automotive | Control units exposed to vibration and heat |
Its adoption in electric vehicles and 5G infrastructure is expected to grow as power density and thermal constraints continue to rise.
What Are the Limitations of Aluminum Nitride PCBs?
Despite its strengths, AlN has some practical constraints, especially related to cost and processing complexity. It also requires careful handling during manufacturing and storage due to its sensitivity to humidity and brittleness.
Limitations of AlN:
| Challenge | Impact |
| High Material Cost | Increases device pricing |
| Brittle Nature | Requires careful handling |
| Processing Difficulty | Specialized equipment needed |
| Moisture Sensitivity | Protective sealing required |
Manufacturers must evaluate whether the performance benefits outweigh these limitations, particularly in price-sensitive consumer markets.
What Future Trends Support the Use of AlN in Electronics?
The push toward miniaturization, high-frequency operation, and electrification of vehicles continues to boost demand for thermally robust materials. AlN is expected to benefit from several future trends:
Emerging Trends Favoring AlN:
| Trend | Effect |
| EV/Power Electronics Growth | Greater need for thermal substrates |
| 5G and mmWave Expansion | Demand for RF-capable ceramics |
| LED Efficiency Push | Enhanced heat dissipation requirements |
| Integration of Smart Modules | Smaller, hotter devices |
As electronics continue to shrink and deliver more power, the demand for reliable thermal materials like AlN will only grow stronger.
FAQ
| Question | Answer |
| Is AlN better than alumina? | Yes, especially in thermal conductivity and CTE matching |
| Can AlN be used for high-frequency circuits? | Absolutely, it has low loss at RF levels |
| Is AlN compatible with direct copper bonding (DCB)? | Yes, widely used in power modules |
| Does AlN absorb moisture? | Slightly; sealing or coating is recommended |
Conclusion
Aluminum nitride has established itself as one of the most effective materials for heat dissipation in electronic systems. Its combination of high thermal conductivity, electrical insulation, and mechanical strength makes it ideal for applications that demand reliability and performance. While challenges remain in processing and cost, ongoing advances in materials engineering are steadily expanding AlN’s availability and affordability.
As electronics continue to evolve, so will the demand for advanced substrates like AlN—a material truly built for the heat of the future.
