Critical Performance Indicators for Silicon Nitride Components

A set of key material and mechanical indicators ultimately dictates the performance of silicon nitride structural components in demanding engineering applications. These metrics—spanning fracture toughness, Weibull modulus, and thermal shock resistance—serve as the critical link between advanced manufacturing processes and real-world reliability. They provide a comprehensive assessment of the entire production chain, from the quality of the raw powder and the forming techniques to the final sintering stage. Consequently, a deep understanding and precise control of these properties are fundamental to ensuring the component’s structural integrity, durability, and suitability for mission-critical environments.

At Advanced Ceramics Hub, we specialize in high-quality silicon nitride products with various forms and specifications, ensuring optimal performance for industrial and scientific applications.

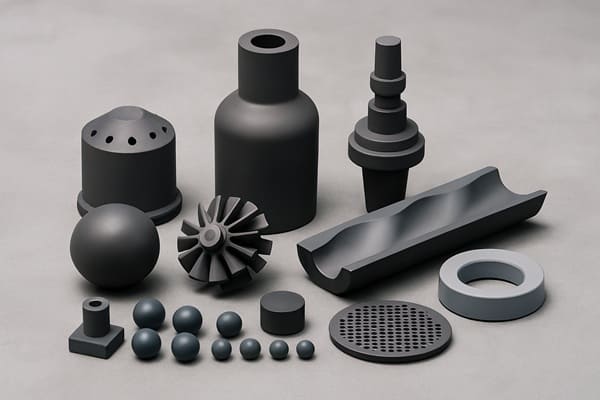

silicon nitride components

Key Mechanical Properties and Their Significance

1. High Fracture Toughness

  • What it is: Fracture toughness (KIc) is a material’s resistance to crack propagation. It’s arguably the most important property for a structural ceramic, as brittleness is its primary limitation.
  • Silicon Nitride’s Value: 6-7 MPa·m¹/² (For comparison: Alumina ~3-4, Soda-lime glass ~0.7, Tool steel ~50).
  • Why it’s high: This is achieved through microstructural engineering. During sintering, additives (like Y₂O₃ and Al₂O₃) form a secondary glassy phase at the grain boundaries. As a crack tries to propagate, it is deflected by the elongated β-Si₃N₄ grains and bridged by them, requiring more energy to continue. This “self-reinforcement” is similar to how fibers reinforce a composite.

2. High Hardness

  • What it is: Resistance to surface deformation and wear (scratching, abrasion).
  • Silicon Nitride’s Value: Vickers Hardness ~1600-1800 HV (For comparison: Tungsten Carbide ~1500-1800 HV, Alumina ~1500-1650 HV, hardened tool steel ~800-900 HV).
  • Significance: This makes it extremely resistant to wear, a critical property for cutting tools, bearings, and wear parts in harsh environments.

3. High Strength and Weibull Modulus

What it is:

  • Strength (Flexural Strength): Resistance to bending or tensile loads. Silicon nitride maintains high strength even at elevated temperatures.
  • Weibull Modulus (m): A measure of the reliability and consistency of strength. A higher Weibull modulus means less variation in strength between individual components (i.e., fewer “weak links” or flaws).

Silicon Nitride’s Values:

  • Flexural Strength (Room Temp): 700-1000 MPa (can exceed 1 GPa in advanced grades)
  • Flexural Strength (at 1200°C): ~500-600 MPa (most steels would have softened dramatically)
  • Weibull Modulus: 15-25 (For comparison, many other ceramics fall within the 5-10 range. A high m is crucial for designing safe ceramic components).

Significance: This combination allows engineers to design highly stressed components with greater confidence.

4. Elastic Modulus

  • What it is: The elastic modulus measures a material’s rigidity, indicating the stress required for unit strain (E = σ/ε). It applies to materials like silicon nitride, which are linearly elastic within the elastic limit. Silicon nitride’s modulus can vary based on manufacturing processes—high-density, fine-grained hot-pressed versions (relative density > 98%) have a higher modulus, while pressureless or reaction-sintered versions (relative density 90%-95%) may have slightly lower values due to porosity.
  • Silicon Nitride’s Value: 280 – 320 GPa (This value is significantly higher than that of metals such as steel (~200 GPa) and aluminum alloys (~70 GPa), and is closer to alumina ceramics (~380 GPa), making it a typical high-rigidity ceramic material).
  • Significance: A high elastic modulus ensures minimal deformation under stress, providing dimensional stability and precision. This makes materials like silicon nitride ideal for high-precision components, such as semiconductor wafer carriers and machine tool rails, preventing issues like positioning errors and vibrations. Silicon nitride’s high modulus, combined with its strength (600-1200 MPa), hardness, and high-temperature resistance, enables it to withstand greater stresses with minimal deformation. Unlike metals, which lose modulus at high temperatures, silicon nitride retains 80%-90% of its room temperature value at 1200°C, making it suitable for high-precision components in high-temperature environments, like turbine blades in aircraft engines.

Key Thermal Properties and Their Significance

1. Low Coefficient of Thermal Expansion (CTE)

What it is: The rate at which a material expands per degree change in temperature.

Value: ~3.0 – 3.3 × 10⁻⁶ /K (over 20-1000°C). This is remarkably low and linear over a wide temperature range.

Significance:

  • Dimensional Stability: Components maintain their size and shape better during temperature fluctuations, which is critical for precision engineering.
  • Thermal Stress Reduction: When a material is heated or cooled, constrained stress is proportional to CTE. A low CTE means lower thermally induced stresses.
  • Compatibility: It can be joined or used with other low-expansion materials (like certain superalloys or graphite) without causing high stresses.

2. Good Thermal Conductivity

What it is: The ability of a material to conduct heat.

Value: ~20 – 30 W/m·K (at room temperature). This is high for a ceramic (e.g., alumina is ~30 W/m·K, but zirconia is only ~2 W/m·K).

Significance:

  • Heat Dissipation: It can effectively transfer heat away from a critical area, preventing overheating. This is vital for components like semiconductor processing equipment.
  • Thermal Shock Resistance: High conductivity allows heat to flow quickly, minimizing temperature gradients (hot spots and cold spots) within a part. This reduces the internal stresses that cause cracking during rapid heating or cooling.

3. High Thermal Shock Resistance

  • What it is: The ability to withstand sudden and extreme changes in temperature without cracking.
  • Why Silicon Nitride excels: This property is a result of its high strength, high fracture toughness, low CTE, and good thermal conductivity (~30 W/m·K). The low CTE minimizes stress buildup, while the high toughness and conductivity help dissipate the energy of the thermal stress.
  • Significance: It can survive being rapidly heated or cooled, a common scenario in engines and metal-forming processes.

4. High-Temperature Capability & Creep Resistance

  • What it is: The ability to retain mechanical strength and resist deformation under load at elevated temperatures.
  • Value: Silicon nitride retains flexural strength of ~500-700 MPa at 1200°C and can operate in oxidizing atmospheres up to ~1300-1400°C.
  • Significance: It does not soften or melt like metals. Its strength actually increases slightly up to ~800-1000°C as the glassy grain boundary phase softens and can heal microcracks, before gradually decreasing at higher temperatures. It exhibits excellent creep resistance compared to silicon carbide or metals.

Key Chemical Properties and Behaviors

1. Oxidation Resistance

  • Behavior: Silicon nitride exhibits outstanding oxidation resistance in air up to high temperatures (~1200-1400°C). When exposed to oxygen, it forms a thin, continuous, and protective layer of silicon dioxide (SiO₂) on its surface:
    2 Si₃N₄(s) + 3 O₂(g) → 6 SiO₂(s) + 4 N₂(g)
  • The Protective Layer: This silica (SiO₂) layer acts as a barrier, dramatically slowing down the diffusion of oxygen to the underlying Si₃N₄ and preventing further oxidation. The rate of oxidation is controlled by the diffusion of oxygen through this silica layer.
  • Limitation: At very high temperatures (above ~1400°C), the silica layer can soften and become less protective. Additionally, the glassy grain boundary phase (formed from sintering aids like Y₂O₃ or MgO) can oxidize at different rates, potentially leading to pitting or surface degradation over very long periods.

2. Resistance to Acids and Alkalis

  • General Behavior: Silicon nitride has good resistance to many chemical attacks, but its performance is highly dependent on the specific chemical, concentration, and temperature.
  • Acids: It has excellent resistance to most inorganic acids (e.g., sulfuric, hydrochloric, nitric) and organic acids, even at boiling temperatures. The protective SiO₂ layer is stable in acidic environments.
  • Alkalis: This is a relative weakness. Concentrated, hot aqueous solutions of strong alkalis (e.g., sodium hydroxide, NaOH, and potassium hydroxide, KOH) will attack and dissolve silicon nitride. The silica layer is soluble in strong bases, breaking down the protective barrier and allowing further corrosion of the bulk material.

3. Resistance to Molten Metals and Salts

Molten Metals: Silicon nitride has exceptional non-wettability against many molten non-ferrous metals. It shows excellent resistance to:

  • Aluminum (Al) and its alloys (up to ~1000°C)
  • Zinc (Zn)
  • Tin (Sn)
  • Lead (Pb)
  • Copper (Cu) (resistance is good but limited to lower temperatures and shorter times compared to Al)
  • It is not resistant to molten metals that form silicides or nitrides, such as molten iron (Fe), nickel (Ni), or cobalt (Co).

Molten Salts: Its resistance to molten salts is generally poor. Salts like sodium sulfate (Na₂SO₄) and chlorides can flux and dissolve the protective silica layer, leading to rapid corrosive attack.

4. Hydrolysis (Reaction with Water)

  • Behavior: In its pure, fully dense form, silicon nitride is very stable in water, even at high temperatures. However, at very high temperatures and pressures (e.g., in supercritical water), it can slowly hydrolyze:
    Si₃N₄(s) + 6 H₂O(g) → 3 SiO₂(s) + 4 NH₃(g)
  • Significance: This property is generally not a concern for most engineering applications, but must be considered for specific uses in power generation or extreme environments.

Core Electrical Property: Excellent Insulator

At its core, silicon nitride is an excellent electrical insulator. This is its most important and utilized property in the microelectronics industry.

Electrical Resistivity:

Very high, typically in the range of 10¹⁴ to 10¹⁶ Ω·cm. For comparison, this is similar to many good glasses and is many orders of magnitude higher than silicon. This high resistivity prevents unwanted leakage currents between conductive parts of a device.

Dielectric Strength:

High, typically 5 to 10 MV/cm. This means it can withstand very high electric fields before it breaks down and begins to conduct electricity (a failure known as dielectric breakdown). This makes it robust for use in capacitors and as a protective layer.

Dielectric Constant (Relative Permittivity, κ or εᵣ):

Ranges from ~6 to 9, depending heavily on the deposition method and film composition (see section below).

  • CVD Si₃N₄: κ ≈ 7 – 9
  • PECVD Si₃N₄: κ ≈ 6 – 8 (often contains hydrogen, which lowers the value)
  • This is considered a “medium-k” dielectric. It is not as high as materials like hafnium oxide (high-k) but is higher than silicon dioxide (κ ≈ 3.9).

Importance:

The excellent high-temperature insulation properties are its core value, with specific engineering significance in three areas:

  • Adaptability to High-Temperature Insulation Scenarios: As an excellent high-temperature insulating material, it meets the dual requirements of “high temperature + insulation” in the power and electronics fields. Examples include insulation supports for high-temperature heating equipment (operating temperature 800-1000°C, requiring long-term insulation retention) and high-temperature insulating components in automotive engine ignition systems (withstanding 200-300°C engine compartment environments to prevent electrical leakage). Traditional insulating materials (plastics, ordinary ceramics) lose their insulating capabilities at these temperatures.
  • Ensuring Stability in High-Voltage Conditions: With an extremely high volume resistivity at room temperature, it can withstand high voltages (breakdown voltage around 15-20 kV/mm), making it suitable for insulation components in high-voltage equipment (such as insulating bushings for high-voltage switches or insulating housings for power capacitors), preventing electrical leakage or short circuits due to insulation failure.
  • Meeting Insulation Needs in Complex Environments: Combining resistance to acid and alkali corrosion with high-temperature oxidation resistance, it maintains its insulating properties in corrosive, high-temperature environments. This is ideal for applications such as insulation supports for high-temperature, corrosive gas pipelines in the chemical industry and insulating components in high-temperature etching equipment in semiconductor manufacturing, addressing the issues of traditional materials that fail in high temperatures or suffer from corrosion damage.

Silicon Nitride vs. Other Advanced Ceramics: A Performance Comparison

Silicon Nitride (Si₃N₄) is a top-tier advanced ceramic, but it competes with other excellent materials. The “best” material is always a trade-off based on the specific application requirements.

Here is a detailed performance comparison of Silicon Nitride against other key structural ceramics: Alumina (Al₂O₃), Zirconia (ZrO₂), and Silicon Carbide (SiC).

PropertySilicon Nitride (Si₃N₄)Alumina (Al₂O₃)Zirconia (ZrO₂ – Y-TZP)Silicon Carbide (SiC)
Density (g/cm³)3.2 – 3.33.7 – 3.96.0 – 6.13.1 – 3.2
Flexural Strength (MPa)600 – 1200300 – 400900 – 1400400 – 600
Fracture Toughness (MPa√m)6 – 93 – 48 – 123 – 4
Hardness (GPa)14 – 1715 – 1912 – 1324 – 28
Young’s Modulus (GPa)300 – 320370 – 400200 – 210400 – 440
Max. Use Temp. (°C)1200 – 1400 (non-load)1500 – 1600800 – 1000*1600 – 1650
Thermal Shock ResistanceExcellentPoorGood (but degraded by aging)Very Good
Thermal Conductivity (W/mK)15 – 3020 – 302 – 380 – 200
Coeff. of Thermal Expansion (10⁻⁶/K)3.27 – 810 – 10.54.0 – 4.5
CostHighVery LowMediumHigh

Silicon nitride stands as a quintessential advanced ceramic material, uniquely balancing an exceptional suite of mechanical, thermal, chemical, and electrical properties. Its high fracture toughness, outstanding thermal shock resistance, excellent high-temperature stability, and superior electrical insulation capabilities make it an indispensable material across a wide range of high-performance applications—from cutting-edge aerospace and energy systems to precision semiconductor manufacturing and advanced industrial wear components.

While other ceramics such as alumina, zirconia, and silicon carbide each possess distinct advantages, silicon nitride consistently delivers a reliable combination of strength, durability, and environmental resistance that is unmatched for applications demanding both structural integrity and functional performance under extreme conditions.

Ultimately, the successful implementation of silicon nitride components relies on a rigorous understanding and control of these critical performance indicators throughout the manufacturing process. Continued advancements in processing techniques and microstructural design will further expand the boundaries of what silicon nitride can achieve, solidifying its role as a material of choice for the most challenging engineering applications of the future.
